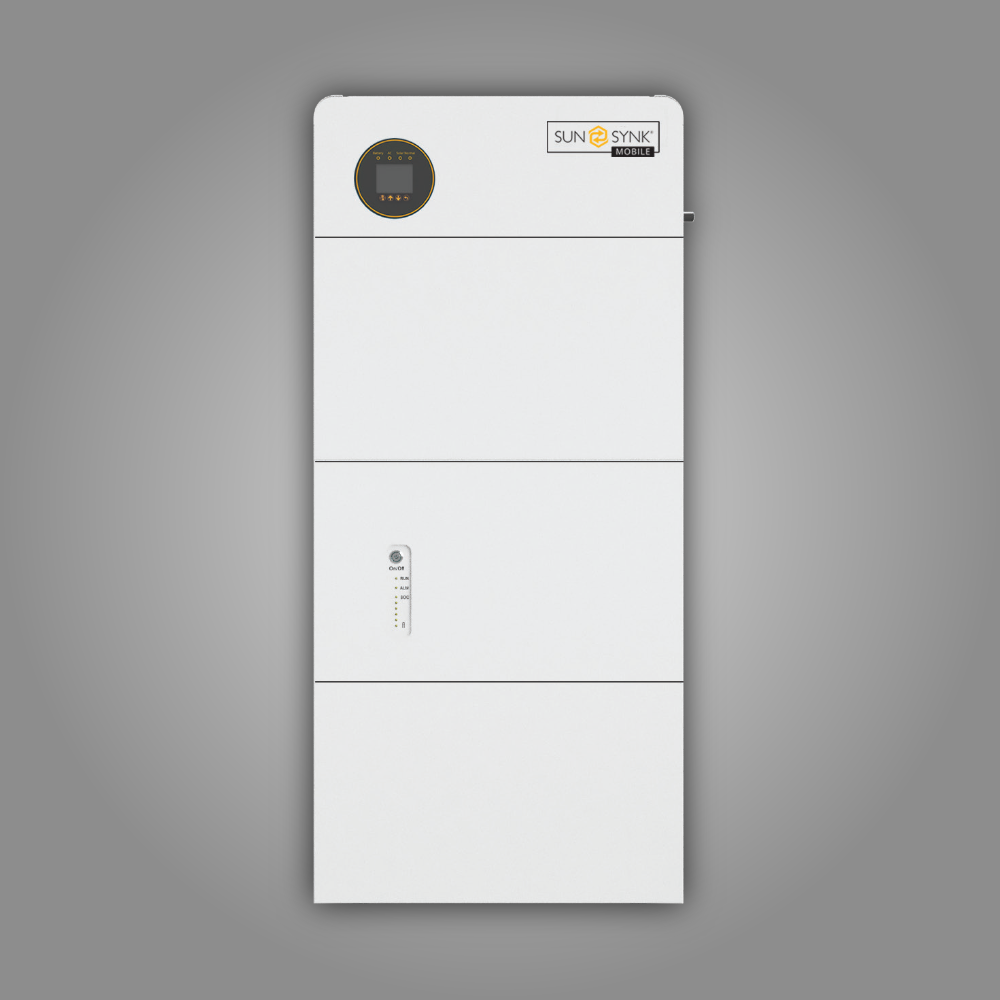

Sunsynk Powerlynk XLS 6kW Hybrid Inverter and 5.12kWh Battery

R 31,925.00 R 37,500.00

Taxes included. Shipping calculated at checkout.

Sunsynk Powerlynk XLS 6kW Hybrid Inverter & 5.12kWh Battery

Model: Powerlynk XLS 6kW
Brand: Sunsynk
Type: All-In-One Hybrid Inverter & Lithium Battery Energy Storage System

Key Features

• All-in-one hybrid energy storage system — inverter and lithium battery integrated into one compact solution
• Plug-and-play installation — designed for rapid deployment in new builds and retrofit projects
• 6kW hybrid inverter output — suitable for residential and light commercial applications
• Integrated 5.12kWh LiFePO₄ battery — reliable backup and daily energy storage
• Dual MPPT solar inputs — supports up to 8kW PV array capacity
• Fast UPS switching — seamless transition within 10ms during outages
• High conversion efficiency — up to 97.6% inverter efficiency and 99.9% MPPT efficiency
• Parallel battery scalability — supports up to 15 battery modules in parallel
• Smart monitoring included — Wi-Fi logger with Sunsynk Connect platform integration
• Advanced battery protection — overcharge, low-voltage, over-temperature, and short-circuit protection
• Compact vertical design — ideal for modern residential installations

PV Input Specifications

Specification	Details
Max PV Input Power	8000W (4000W × 2)
Number of MPPTs	2
MPPT Voltage Range	120V – 450V
Max PV Input Voltage	500V
Max Input Current	30A (15A per MPPT)

AC Output & Grid Specifications

Specification	Details
Rated Output Power	6000W
Peak Apparent Power	12000VA
Output Voltage	220V / 230V / 240V AC
Phase Type	Single-Phase
Max Output Current	26A
Transfer Time	10ms
Max Efficiency	97.6%
MPPT Efficiency	99.9%

Battery Specifications

Specification	Details
Battery Chemistry	LiFePO₄ (LFP)
Nominal Voltage	51.2V
Battery Capacity	100Ah
Usable Energy	5.12kWh
Max Charge / Discharge Current	100A
Cycle Life	3500 Cycles
Recommended Depth of Discharge	80%
Scalability	Up to 15 Batteries in Parallel

General Specifications

Specification	Details
Dimensions	516 × 179 × 1128 mm
Weight	75.5 kg
Protection Rating	IP40
Discharge Temperature	-15°C to +50°C
Charge Temperature	0°C to +50°C

Monitoring & Communication

Specification	Details
Monitoring Platform	Sunsynk Connect
Connectivity	Wi-Fi Data Logger Included
Remote Monitoring	Supported

Protection Features

• Overcharge protection
• Low-voltage protection
• Over-temperature protection
• Short-circuit protection

Applications

• Residential solar backup systems
• Load shedding protection
• Hybrid solar installations
• New-build energy storage systems
• Retrofit solar upgrades

Quality & Support

The Sunsynk Powerlynk XLS 6kW combines hybrid inverter functionality and lithium energy storage into a streamlined plug-and-play platform. With dual MPPT tracking, scalable storage, and intelligent monitoring, it provides a reliable and efficient solution for modern residential backup and solar energy applications.
