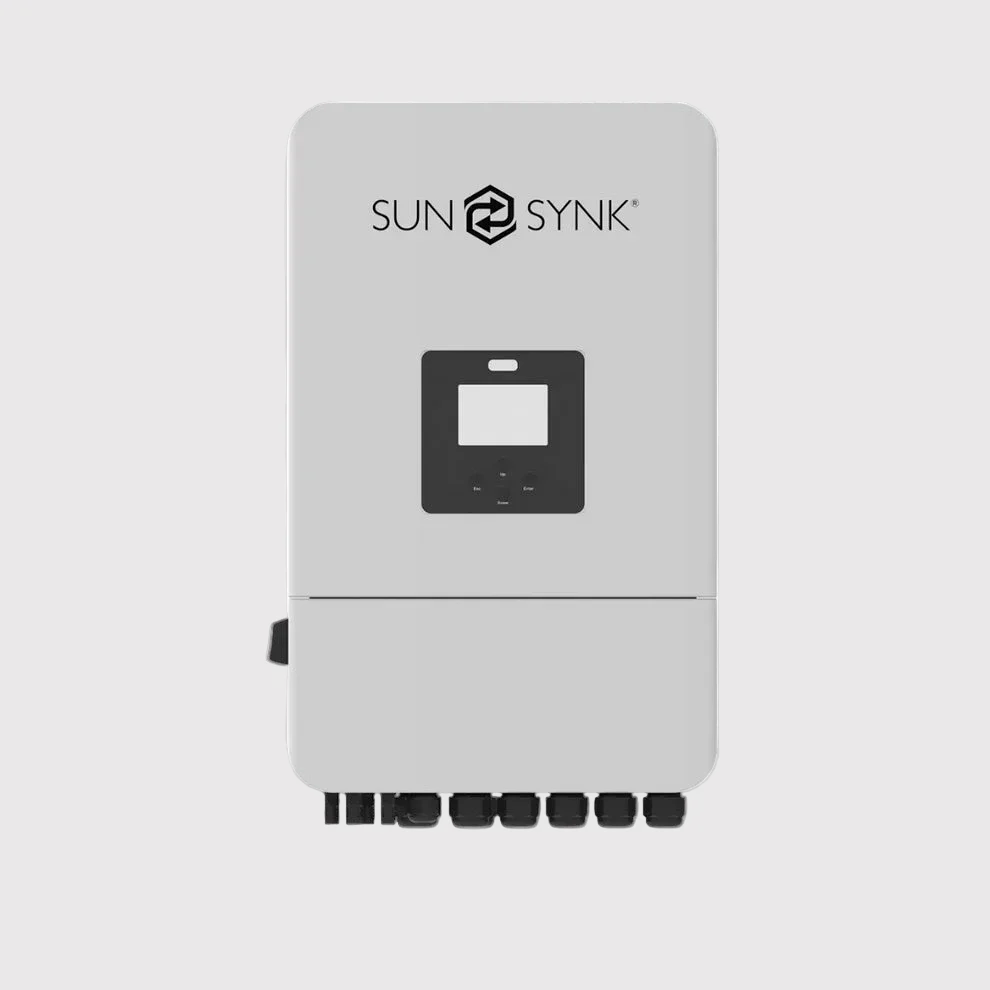

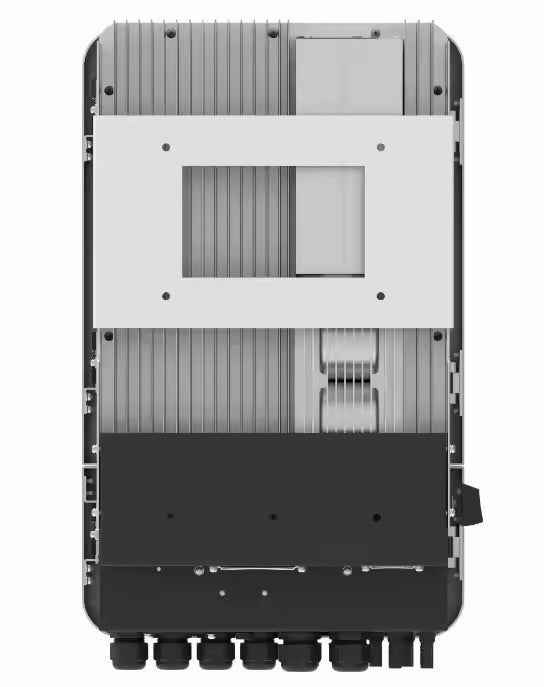

Sunsynk 8 kW 1-Phase Hybrid Inverter (LV) (2nd Gen)

R 22,290.00 R 27,950.00

Taxes included. Shipping calculated at checkout.

🔌 Sunsynk 8kW 1-Phase Hybrid Inverter

Model: SYNK-ECO-8K-SG05LP1-SM2
Brand: Sunsynk
Type: Single-Phase Low-Voltage Hybrid Inverter

⚡ Key Features

8kW continuous single-phase output for residential and light commercial solar systems.
Supports solar PV, battery storage, grid power, and generator integration in one intelligent hybrid solution.
Dual MPPT design maximises solar energy production across multiple roof orientations.
Compatible with 48V lithium-ion and lead-acid battery banks.
Up to 190A maximum battery charge/discharge current for faster charging and higher backup capability.
Supports parallel operation of up to 16 inverters for larger installations.
Intelligent energy management with programmable operating modes, peak shaving, and time-of-use scheduling.
Seamless UPS-grade changeover for uninterrupted backup power.
IP65-rated enclosure suitable for indoor or outdoor installation.
Built-in Wi-Fi monitoring with CAN, RS485, and RS232 communication interfaces.
Compatible with CT coils for export limitation and zero-export applications.

📐 Technical Specifications

Specification	Value
Model	SUNSYNK-8K-SG05LP1-EU
Rated AC Output Power	8,000W
Max. AC Output Power	8,800W
Battery Type	Lithium-ion / Lead-acid
Battery Voltage	40–60V (48V Nominal)
Max. Charge Current	190A
Max. Discharge Current	190A
Number of Battery Inputs	2
Max. PV Input Power	16,000W
Max. DC Input Voltage	500V
Start-up Voltage	125V
MPPT Voltage Range	150–425V
Rated PV Input Voltage	370V
Number of MPPTs	2
Strings per MPPT	2 + 1
Max. PV Input Current	36A + 18A
Max. PV Short-Circuit Current	54A + 27A
Rated Output Voltage	220/230V Single Phase
Grid Frequency	50/60Hz
Maximum Efficiency	97.6%
MPPT Efficiency	>99%
Transfer Time	<10ms
Protection Rating	IP65
Cooling	Intelligent Air Cooling
Communication	Wi-Fi, RS485, CAN, RS232
Dimensions (W × H × D)	420 × 670 × 233mm
Weight	Approximately 32kg
Operating Temperature	-40°C to +60°C (>45°C derating)
Max. Operating Altitude	3,000m
Noise Level	<45dB
Warranty	5 Years (extendable depending on installation and registration)

🏷️ Quality & Support

The Sunsynk 8kW Hybrid Inverter is a powerful and flexible energy management solution designed for residential and small commercial solar systems. With dual MPPT technology, high battery charging capability, seamless backup switching, and support for up to 16 units in parallel, it delivers exceptional efficiency, reliable backup power, and scalable performance. Its IP65-rated enclosure, intelligent monitoring, and compatibility with a wide range of low-voltage battery systems make it an ideal choice for grid-tied, hybrid, and off-grid energy installations.
