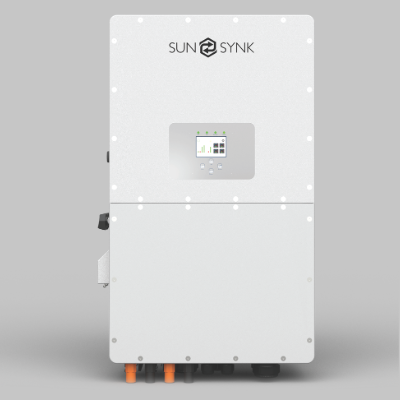

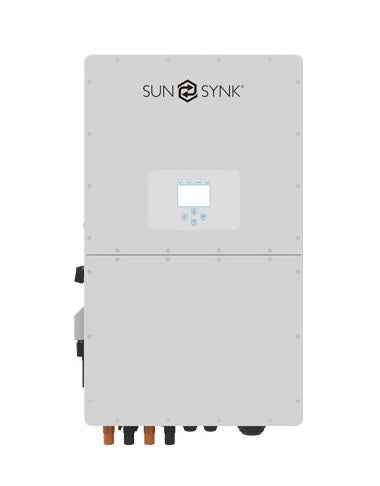

🔌 Sunsynk 50 kW 3-Phase High Voltage Hybrid Inverter
Model: SUNSYNK-50K-SG01HP3-HV
Brand: Sunsynk
Type: Three-Phase Hybrid Inverter (Solar + High-Voltage Battery + Grid Integration)
⚡ Key Features
-
50 kW rated 3-phase output — ideal for large commercial, industrial, or utility-scale installations requiring high-capacity, balanced power.
-
High-voltage hybrid operation — integrates solar PV, high-voltage battery storage, and grid supply for optimized energy management.
-
Multiple MPPT trackers — ensures efficient energy harvesting from large and complex PV arrays.
-
Wide battery compatibility — supports 160–1000 V high-voltage battery systems with high charge/discharge current.
-
Parallel-ready architecture — allows multiple units to be connected for scalable, high-power systems.
-
Advanced energy management — supports self-use, backup, peak-shaving, and grid-support modes.
-
Comprehensive protection — over-voltage, over-current, short-circuit, and thermal protections included.
-
Durable IP65 enclosure — suitable for indoor or outdoor installation.
-
Intelligent monitoring — touchscreen display with Wi-Fi, RS485/CAN connectivity, and portal integration for real-time system control.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-50K-SG01HP3-HV |
| Rated AC Output Power | 50 kW |
| Max PV Input Power | ~65 kW |
| Max PV Input Voltage | ~1000 V |
| MPPT Voltage Range | 150 – 850 V |
| Number of MPPTs | 3 |
| Max PV Input Current | ~50 A per MPPT |
| Battery Voltage Range | 160 – 1000 V |
| Max Charge/Discharge Current | ~400 A |
| Max Efficiency | ~97.8 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~606 × 927 × 314 mm |
| Weight | ~210 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 50 kW 3-Phase High Voltage Hybrid Inverter is engineered for large-scale commercial and industrial solar-plus-storage applications. Its robust MPPT architecture, wide high-voltage battery support, and parallel scalability ensure maximum efficiency, reliable backup power, and long-term operational durability.
