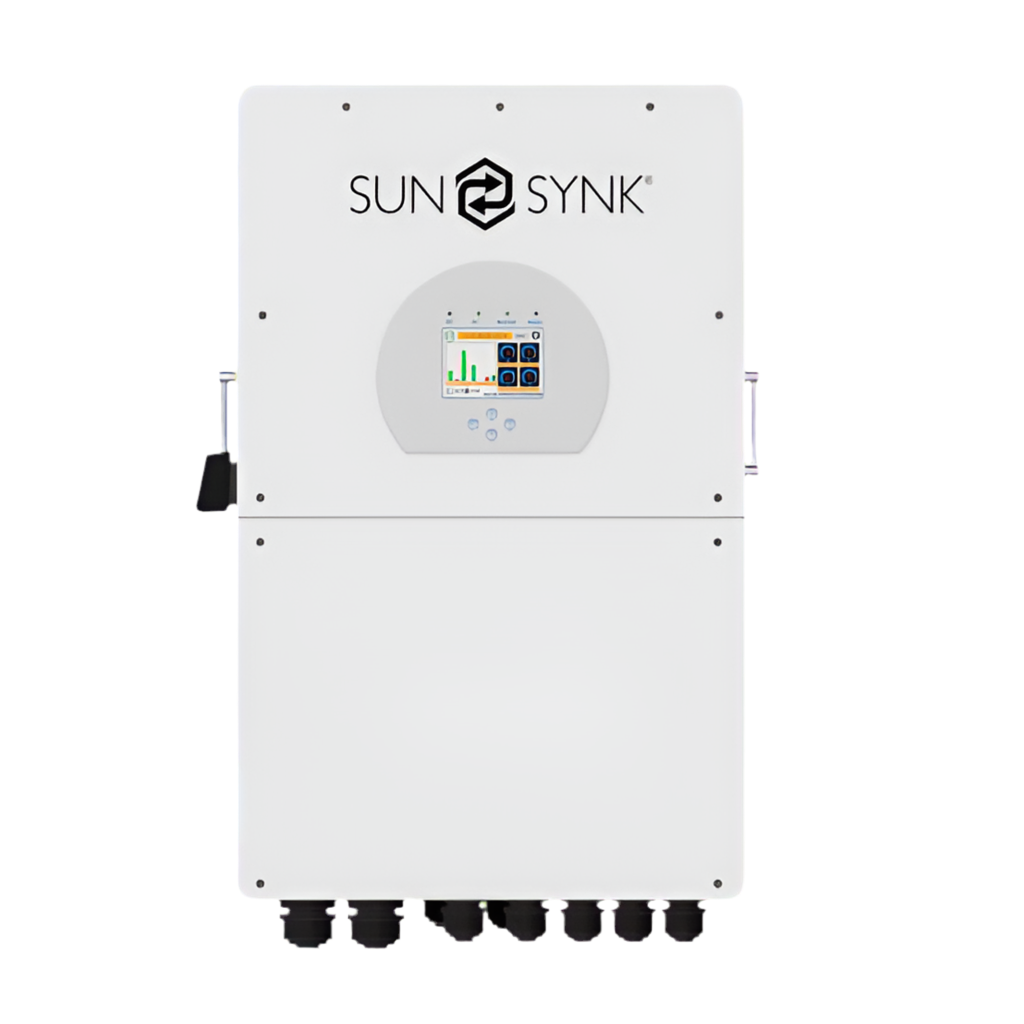

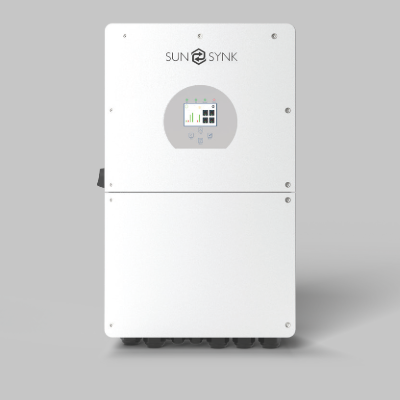

Sunsynk 16kW 1P Hybrid Inverter (LV)

R 36,030.00 R 46,150.00

Taxes included. Shipping calculated at checkout.

🔌 Sunsynk 16 kW 1-Phase Hybrid Inverter

Model: SUNSYNK-16K-SG04LP1
Brand: Sunsynk
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid Integration)

⚡ Key Features

16 kW rated AC output — suitable for large residential or small commercial installations requiring high single-phase power.
Full hybrid functionality — integrates solar PV, battery storage, and grid supply for seamless energy management and backup.
Dual MPPT inputs — optimize energy yield from multiple PV string orientations.
High battery current support — up to 240 A charge/discharge for fast and efficient storage cycling.
Parallel operation ready — supports connection of up to 16 inverters for scalable systems.
Advanced energy management — programmable modes for self-use, peak shaving, and backup operation.
Durable design — IP65-rated enclosure for indoor or outdoor mounting.
Smart monitoring — built-in touchscreen display with Wi-Fi connectivity and portal integration.

📐 Specifications

Specification	Value
Model	SUNSYNK-16K-SG04LP1
Rated AC Output Power	16 kW
Max PV Input Power	~20 kW
Max PV Input Voltage	500 V
MPPT Voltage Range	125 – 425 V
Number of MPPTs	2
Max PV Input Current	18 A per MPPT
Battery Voltage Range	40 – 60 V (48 V nominal)
Max Charge/Discharge Current	Up to 240 A
Max Efficiency	~97.6 %
Protection Rating	IP65
Communication Interfaces	RS485, CAN, Wi-Fi
Dimensions (W × H × D)	~460 × 515 × 190 mm
Weight	~28 kg
Warranty	Standard manufacturer warranty

🏷️ Quality & Support

The Sunsynk 16 kW 1-Phase Hybrid Inverter provides high-capacity, reliable energy for large residential or small commercial applications. With intelligent MPPT tracking, robust battery support, and full hybrid functionality, it ensures efficient self-consumption, backup power, and system scalability — all in a durable, weatherproof design.

Spec Sheet And Installation Manual
