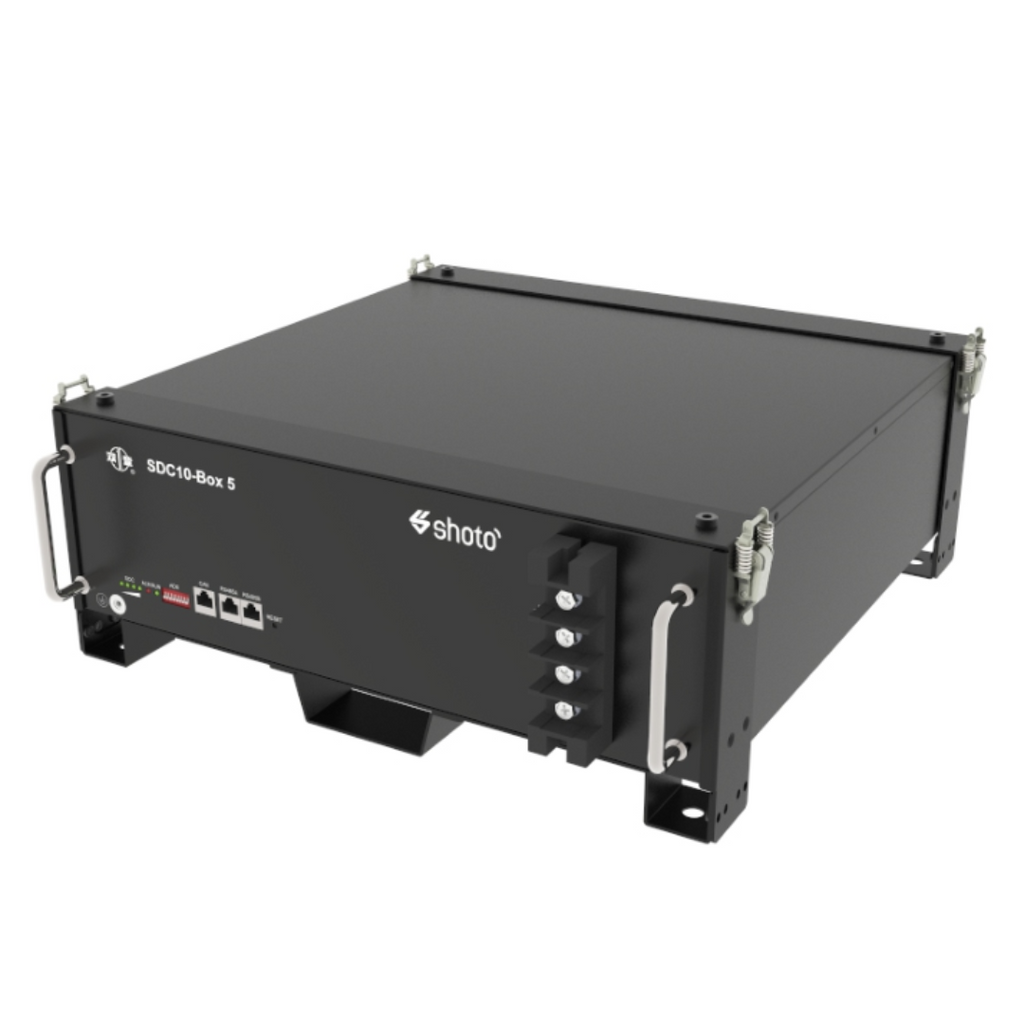

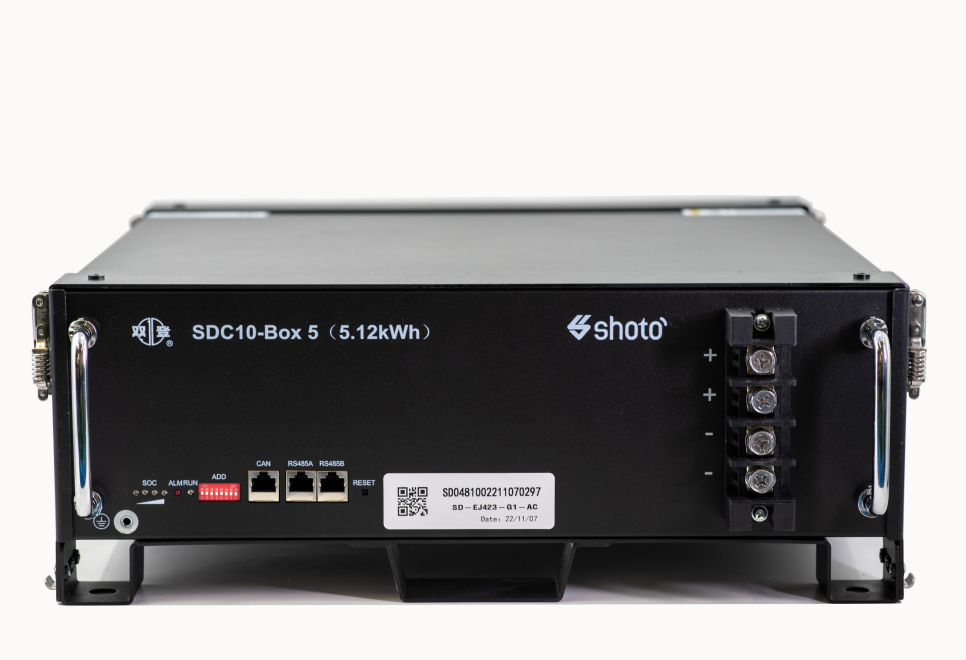

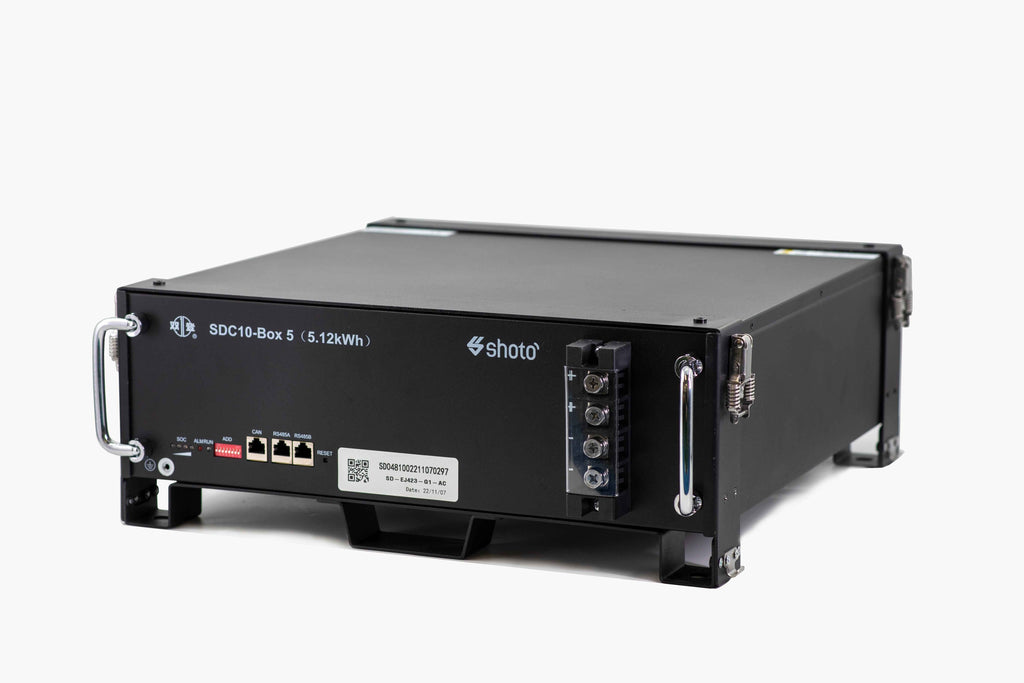

Shoto SDC10-Box5 5.12kWh LiFePO₄ Battery

R 12,050.00 R 14,900.00

Taxes included. Shipping calculated at checkout.

Shoto SDC10-Box5 — 5.12 kWh Lithium Solar Battery (51.2 V)

Product Type: Lithium Iron Phosphate (LiFePO₄) Battery

Brand: Shoto

Model: SDC10-Box5

Application: Home & light-commercial solar storage systems

🔋 Key Features

5.12 kWh energy capacity — ideal for residential backup or hybrid solar installations.
High-safety LiFePO₄ chemistry — stable performance with excellent thermal protection.

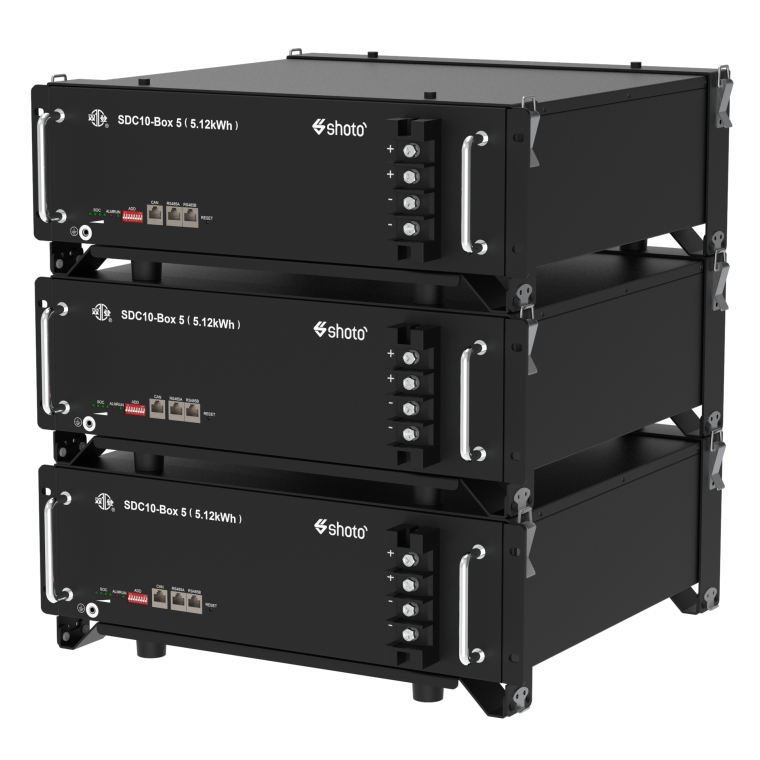

Modular expansion — multiple units can be paralleled to meet higher energy demands.
Long cycle life — engineered for heavy daily cycling applications.
Smart BMS system — provides real-time protection against over-voltage, deep discharge, over-current & temperature faults.
Compact 19-inch rack-mount design — easy cabinet or wall-rack installation.
Wide inverter compatibility — supports CAN & RS485 communication for seamless integration.

📐 Specifications

Specification	Value
Model	SDC10-Box5
Nominal Energy	5.12 kWh
Usable Energy	±4.86 kWh (95% DoD typical)
Nominal Voltage	51.2 V
Battery Chemistry	LiFePO₄
Rated Capacity	100 Ah
Cycle Life	6,000+ cycles @ 80–95% DoD
Max Charge/Discharge Current	100 A
Peak Discharge (short duration)	Up to 150–200 A (model-dependent)
Communication	CAN / RS485
Parallel Capability	Multiple units in parallel
Mounting	19-inch rack-mount
Dimensions	~442 × 420 × 135 mm (standard rack size)
Weight	~45–50 kg
Operating Temp (Charge)	0 °C to 55 °C
Operating Temp (Discharge)	–10 °C to 55 °C
IP Rating	IP20 (indoor)

🏷️ Quality & Support

The Shoto SDC10-Box5 delivers proven durability, excellent depth-of-discharge performance, and long service life using robust LiFePO₄ cells. Built for hybrid and off-grid applications, it integrates smoothly with leading inverter brands and offers a scalable, reliable energy-storage solution for South African homes.
