ITS 12.8kW Inverter Pool Heat Pump White or Black 25.6kW Combo

ITS 12.8kW Inverter Pool Heat Pump Combo (For ±80,000L Pools)

🆔 Models

Heat Pumps: ITS-12.8HP32i Inverter Pool Heat Pump (Qty: 2 Units)

Includes

• 2 × ITS 12.8kW Inverter Pool Heat Pump Units
• Built-in Wi-Fi smart control (per unit)
• Pre-charged R32 refrigerant systems

Key Features

• Combined system designed for pools up to ±80,000 litres
• Dual 12.8kW units for faster heating and improved efficiency
• Inverter technology for reduced energy consumption and stable temperature control
• Eco-friendly R32 refrigerant with high performance
• Built-in Wi-Fi for remote monitoring and control
• Ultra-quiet operation (~43 dB per unit)
• Durable outdoor design with UV-resistant casing
• Scalable setup with redundancy (system continues if one unit is offline)

Specifications (Per Unit)

Physical Specifications (Per Unit)

System Performance

• Designed for pools up to ±40,000L per unit
• Dual-unit configuration supports ±80,000L pools
• Faster heat-up times compared to single-unit systems
• Improved efficiency through load sharing

Technical & Build

Additional Information

• Ideal for large residential pools or small commercial applications
• Works with standard pool filtration systems
• Can be installed in parallel for optimal performance
• Professional installation recommended

Quality & Support

ITS Heat Pumps provide reliable, energy-efficient pool heating with inverter technology and smart control, ensuring consistent temperature, lower running costs, and long-term durability for larger pool installations.

-Spec Sheet

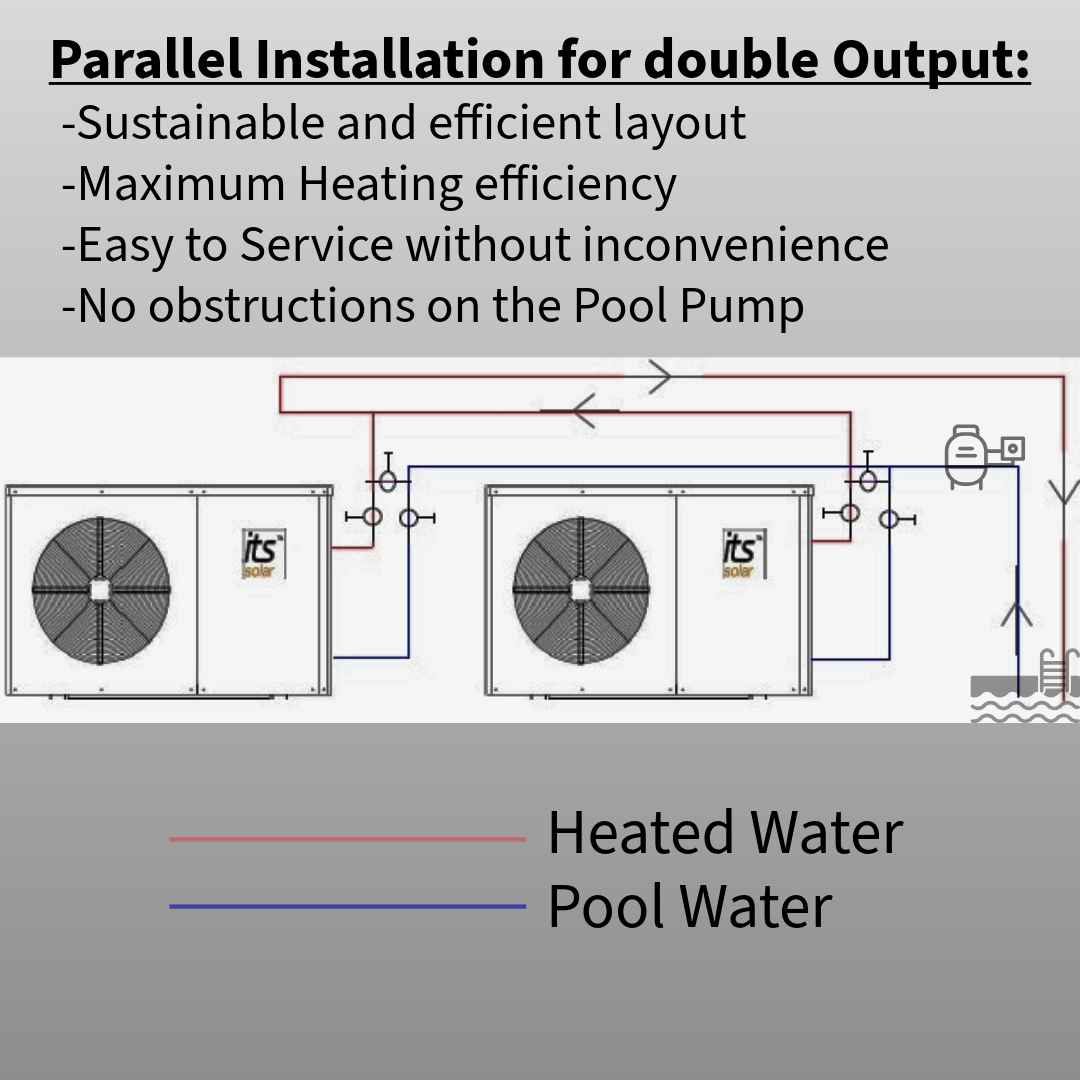

Installing two pool heat pumps in parallel (where the water flow splits and passes through both heaters simultaneously) is required over a series installation for three primary reasons:

• Maximises Heating Efficiency: Heat pumps transfer heat most efficiently when there is a large temperature gap between the air/heating elements and the water. A parallel setup feeds the coldest pool water into both units simultaneously. In series, the second unit receives already-warmed water from the first, drastically lowering its efficiency.
• Prevents Flow Bottlenecks: Heat pumps require a specific, high volume of water flow function safely. Forcing the entire pool's water volume through the narrow internal heat exchangers of two units in a single line (series) creates high hydraulic resistance, straining your main pool pump. Parallel plumbing cuts this resistance in half.
• Ensures System Redundancy: If one heat pump fails or requires maintenance, a parallel configuration allows you to isolate and bypass that specific unit. The second heat pump can continue running and heating the pool normally. In series, a failure in one unit completely blocks or disrupts the entire loop.
