R 37,400.00 R 38,100.00

Taxes included. Shipping calculated at checkout.

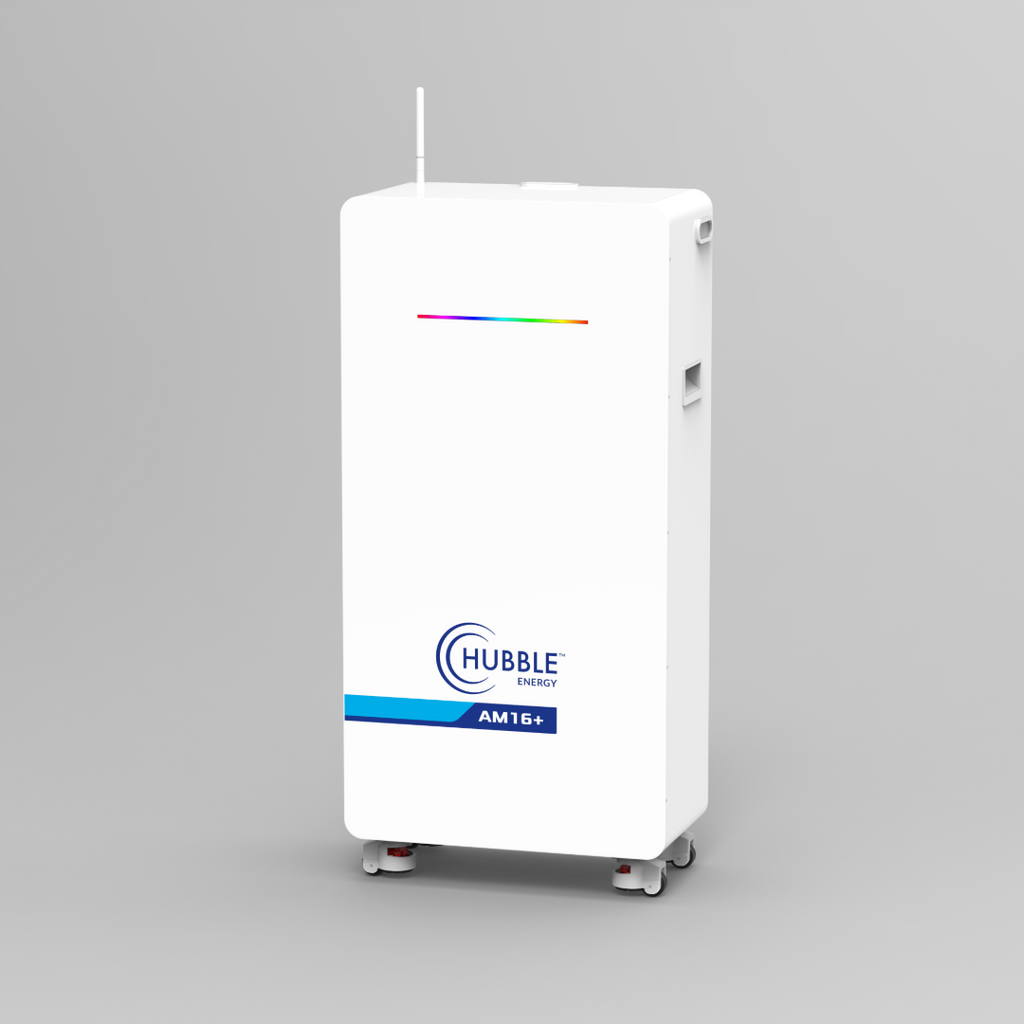

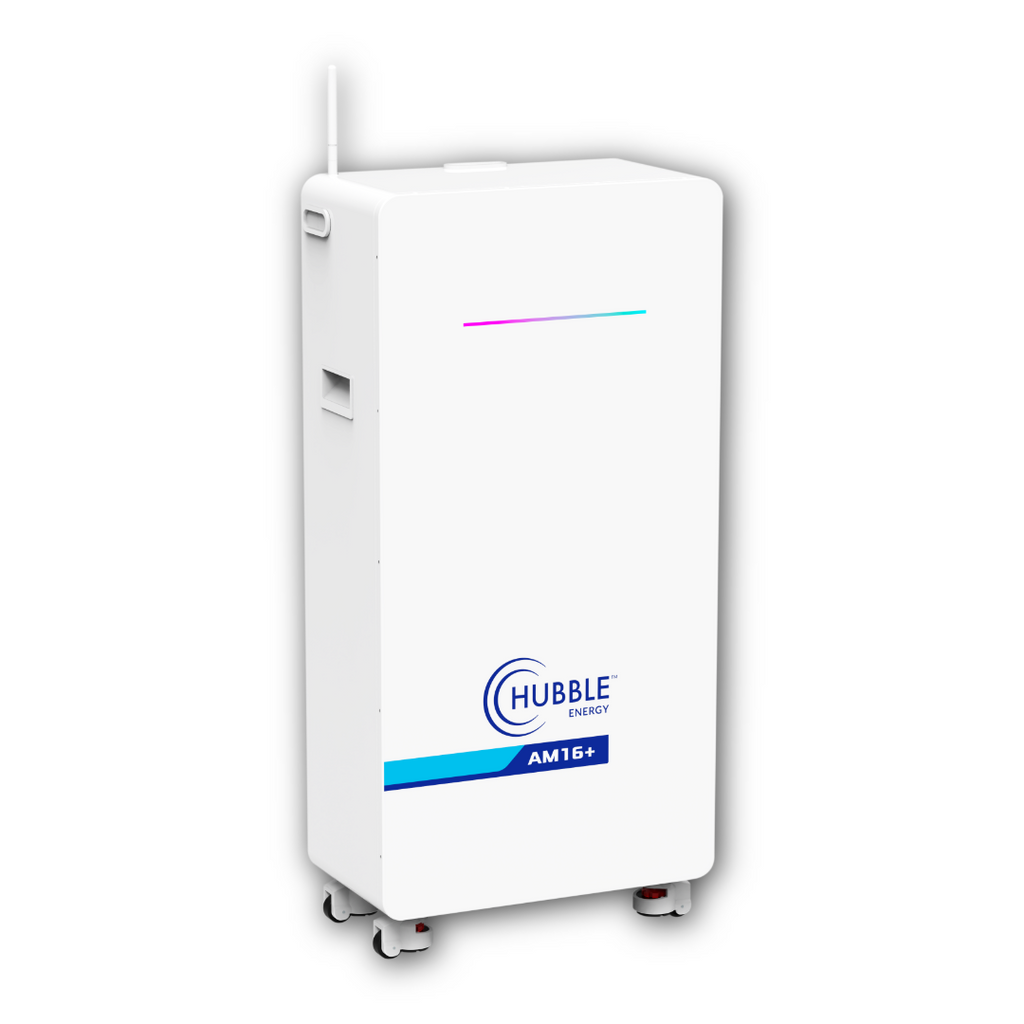

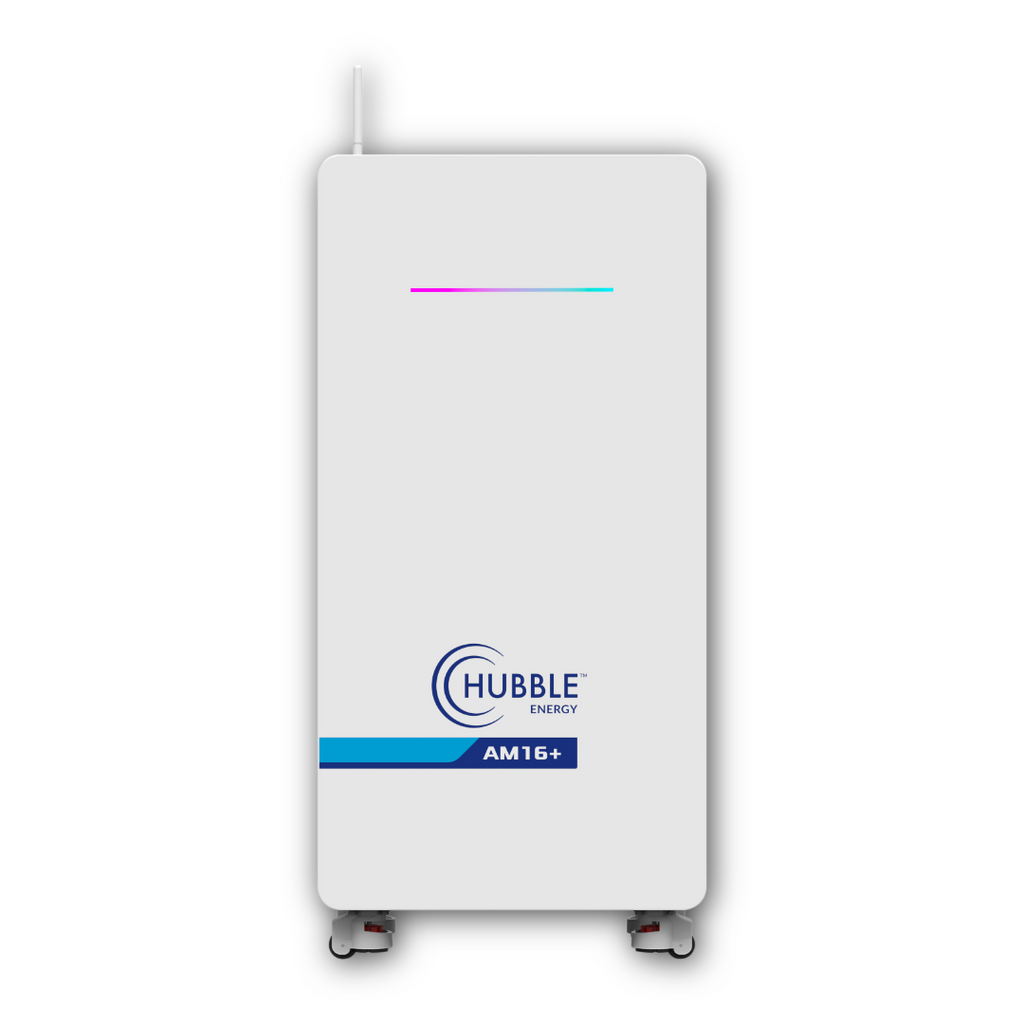

🔋 Hubble AM16 PLUS 16kWh Lithium Battery

Brand: Hubble Lithium
Model: AM16 PLUS
Type: Low-Voltage LiFePO₄ Battery Energy Storage System
Application: Residential & Commercial Solar, Backup & Off-Grid Energy Storage

⚡ Key Features

16.1kWh energy capacity provides long-lasting backup power for residential and commercial energy storage systems.
314Ah LiFePO₄ prismatic cells deliver exceptional safety, reliability, and long service life.
Integrated Hubble Cloudlink enables 24/7 remote monitoring and real-time battery performance tracking.
Advanced Battery Management System (BMS) protects against overcharge, over-discharge, over-current, short circuit, and over/under-temperature conditions.
Unlimited cycle warranty for 10 years (Terms & Conditions apply) for outstanding long-term value.
Supports up to 15 batteries in parallel with full communication for scalable energy storage systems.
Intelligent current limiting automatically regulates charging current to protect the battery.
Informative RGB LED display strip provides clear battery status and state-of-charge indication.
Low self-discharge ensures stored energy is retained for longer periods.
Excellent high-temperature performance delivers reliable operation in demanding environments.
Lockable wheels and low centre-of-gravity design allow safe placement and easy mobility.
Compatible with leading inverter brands through CAN Bus, RS485, and RS232 communication.

📐 Technical Specifications

Specification	Value
Model	AM16 PLUS
Battery Chemistry	LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage	51.2V DC
Rated Capacity	314Ah
Battery Energy	16.1kWh
Maximum Continuous Charge Current	130A
Maximum Continuous Discharge Current	157A
Recommended Inverter Cut-Off Voltage	49V
Minimum Inverter Cut-Off Voltage	47V
Parallel Capability	Up to 15 Batteries
Communication	CAN / RS485 / RS232
Monitoring	Integrated Hubble Cloudlink
Cell Type	LiFePO₄ Prismatic Cells
Cell Balancing	Passive Cell Balancing
Design Life	±15 Years
Cycle Life	Unlimited Cycles (Within 10-Year Warranty Terms & Conditions)
Operating Temperature (Charging)	-10°C to 50°C
Storage Temperature	10°C to 50°C
Humidity	15% – 75%
Protection	Overcharge, Over-discharge, Over-current, Short Circuit, Over & Under Temperature
Certification	CE, UN38.3
Enclosure	White Bake Lacquer Steel
Dimensions (H × W × D)	970 × 500 × 260 mm
Weight	Approximately 131.5 kg

🏡 Benefits

High-capacity energy storage for demanding residential and commercial solar systems.
Real-time cloud monitoring allows convenient remote system management.
Modular design supports future expansion with up to 15 batteries connected in parallel.
Advanced BMS and intelligent current limiting maximise battery safety and lifespan.
Lockable wheels and floor-standing installation simplify positioning and maintenance.
Long design life and unlimited cycle warranty provide exceptional long-term reliability.
Compatible with a wide range of leading hybrid inverter brands for seamless system integration.

🏷️ Applications

Residential solar battery storage
Commercial energy storage systems
Hybrid solar installations
Off-grid power systems
Backup power during load shedding
Peak demand management and self-consumption optimisation

🏷️ Quality & Support

The Hubble AM16 PLUS 16kWh Lithium Battery combines high-capacity LiFePO₄ technology with intelligent battery management, integrated cloud monitoring, and industry-leading scalability. Designed for reliable long-term energy storage, it features advanced safety protection, excellent thermal performance, and seamless compatibility with leading inverter brands. Backed by Hubble's 10-Year Unlimited Cycle Warranty (Terms & Conditions apply), the AM16 PLUS is an ideal solution for residential and commercial solar energy storage systems.
