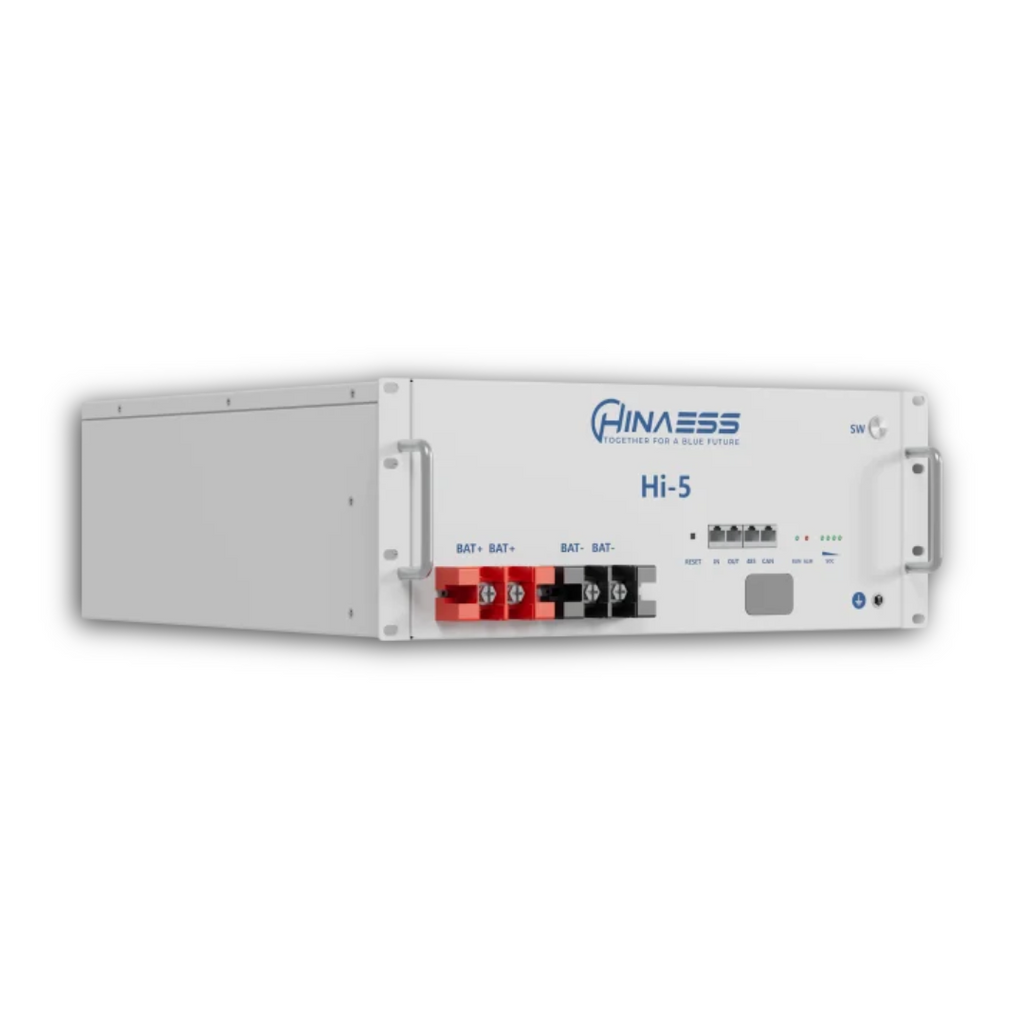

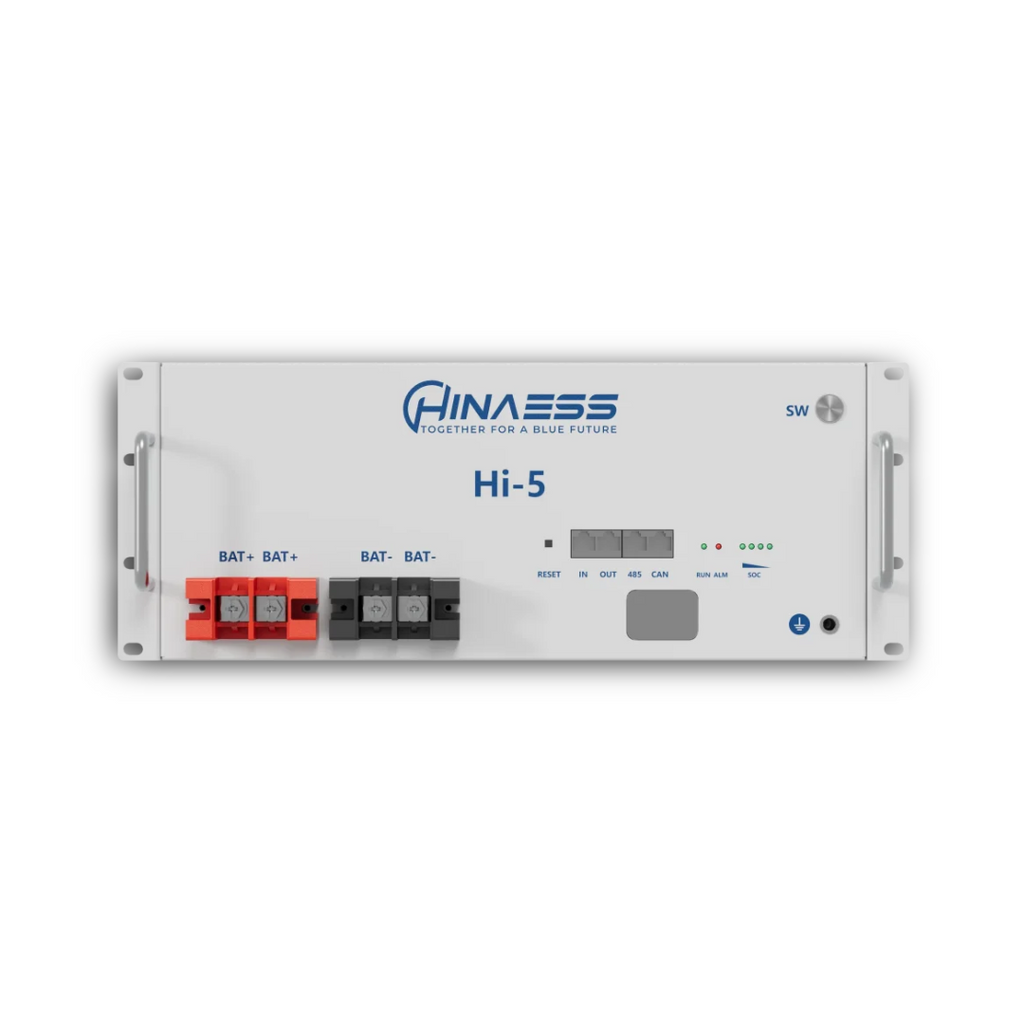

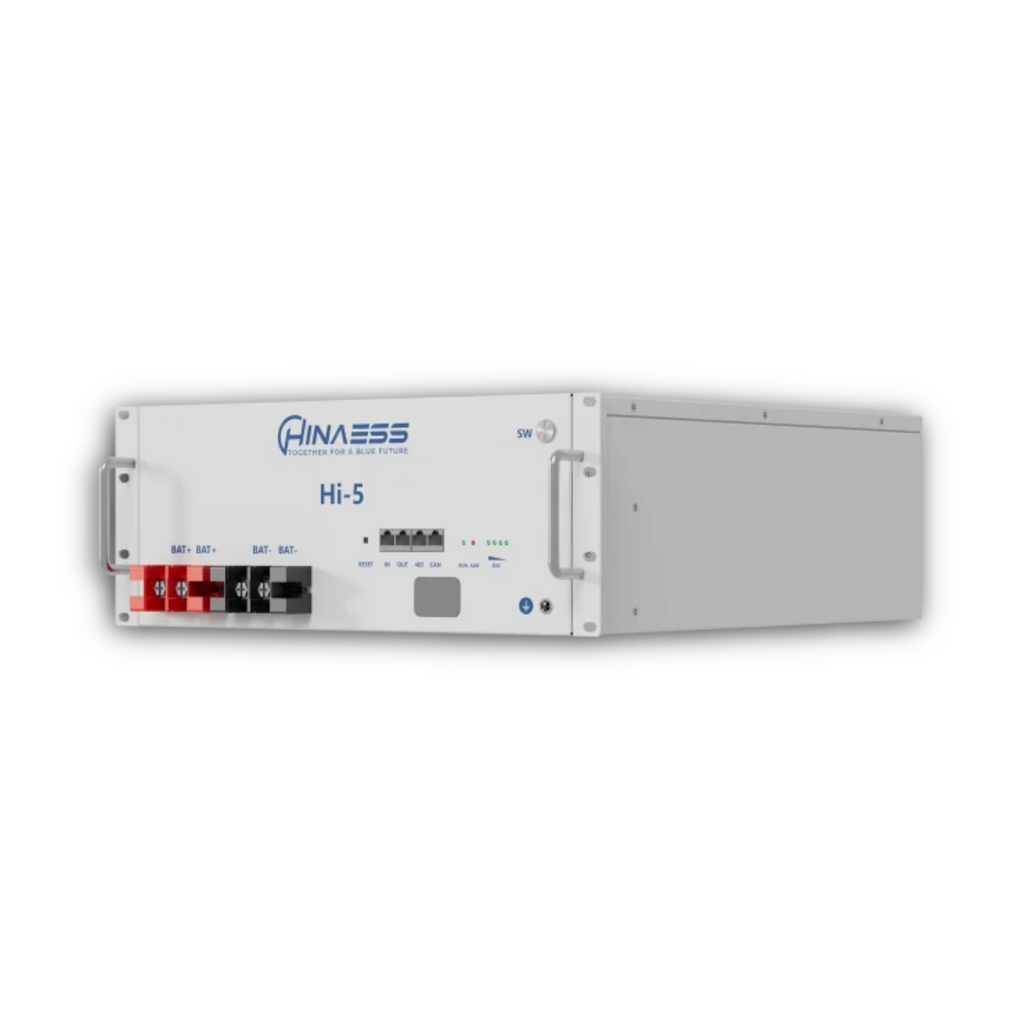

Hina ESS Hi-5 5.12kWh V3 Lithium-Ion Battery
Default Title
R 13,600.00
Skip to product information
Hina ESS Hi-5 5.12kWh V3 Lithium-Ion Battery
R 13,600.00
Taxes included.
Shipping calculated at checkout.
Hina ESS Hi-5 5.12kWh V3 Lithium-Ion Battery
Model: Hi-5 V3
Brand: HinaESS
Type: 51.2V Lithium Iron Phosphate (LFP) Solar Battery
Key Features
• 5.12kWh lithium energy storage battery — ideal for residential backup and solar applications
• Advanced LiFePO₄ chemistry — improved safety, thermal stability, and long lifespan
• 100Ah capacity with 90% depth of discharge — maximised usable energy storage
• High cycle life — over 6,000 cycles at 25°C
• Built-in smart BMS — intelligent battery protection and performance management
• Integrated fire suppression system — enhanced operational safety
• Built-in WiFi and Bluetooth — convenient remote monitoring and firmware upgrades
• Broad inverter compatibility — supports Victron, Deye, Luxpower, Growatt, Solis, Goodwe, and more
• Highly scalable system — supports up to 50 batteries in parallel without additional devices
• Expandable to 256 units with hub integration — suitable for larger ESS installations
• Wall-mount brackets included — flexible and convenient installation
• Robust industrial-grade construction — designed for residential and commercial applications
Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | LiFePO₄ (LFP) |
| Rated Energy | 5.12kWh |
| Rated Capacity | 100Ah |
| Rated Voltage | 51.2V |
| Charge Voltage | 57.2V |
| Depth of Discharge | 90% |
| IP Rating | IP20 |
Charge & Discharge Specifications
| Specification | Details |
|---|---|
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Peak Discharge Current | 105A (15s) |
| Surge Discharge Current | 150A (0.5s) |
Performance & Lifespan
| Specification | Details |
|---|---|
| Cycle Life | 6,000 Cycles |
| Test Conditions | 25°C, 90% DoD, 0.5C |
| Warranty | 10 Years |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 438 × 165 × 546 mm |
| Weight | 49.4 kg |
| Mounting | Wall-Mount |
Operating Conditions
| Specification | Details |
|---|---|
| Working Temperature | -20°C to +55°C |
Communication & Monitoring
| Specification | Details |
|---|---|
| Connectivity | WiFi + Bluetooth |
| Remote Monitoring | Supported |
| Firmware Upgrades | Supported |
Protection Features
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Voltage protection
• Temperature protection
• Short-circuit protection
• Reverse polarity protection
• Built-in fire suppression system
Inverter Compatibility
Compatible with a wide range of inverter brands including:
• Victron
• Deye
• Luxpower
• Growatt
• Solis
• Goodwe
Scalability
| Specification | Details |
|---|---|
| Parallel Support | Up to 50 Units |
| Expanded System Support | Up to 256 Units with Hub |
Applications
• Residential backup systems
• Load shedding solutions
• Hybrid solar systems
• Off-grid energy storage
• Commercial ESS installations
Quality & Support
The HinaESS Hi-5 V3 combines long-life LiFePO₄ technology, intelligent monitoring, and advanced safety systems in a scalable and installer-friendly design. With broad inverter compatibility and robust energy performance, it is an excellent solution for modern residential and commercial energy storage applications.
