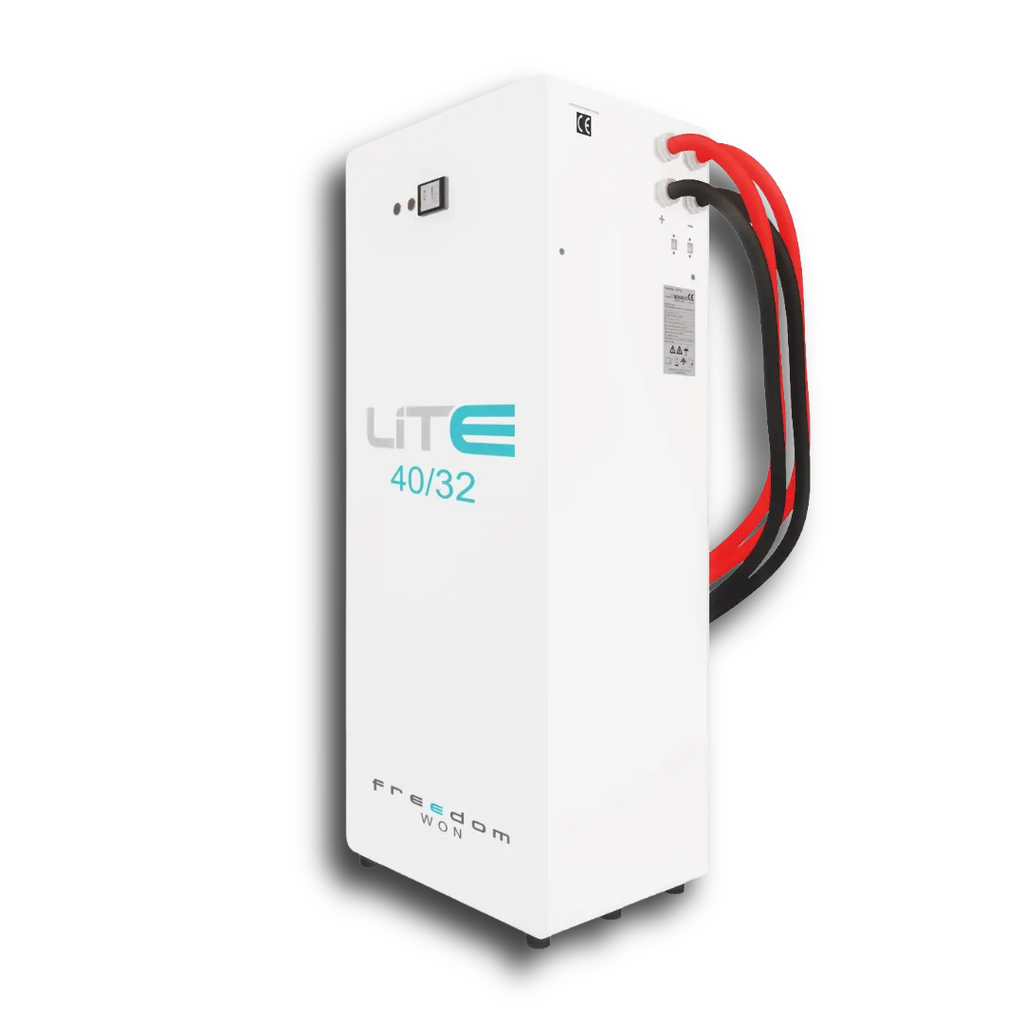

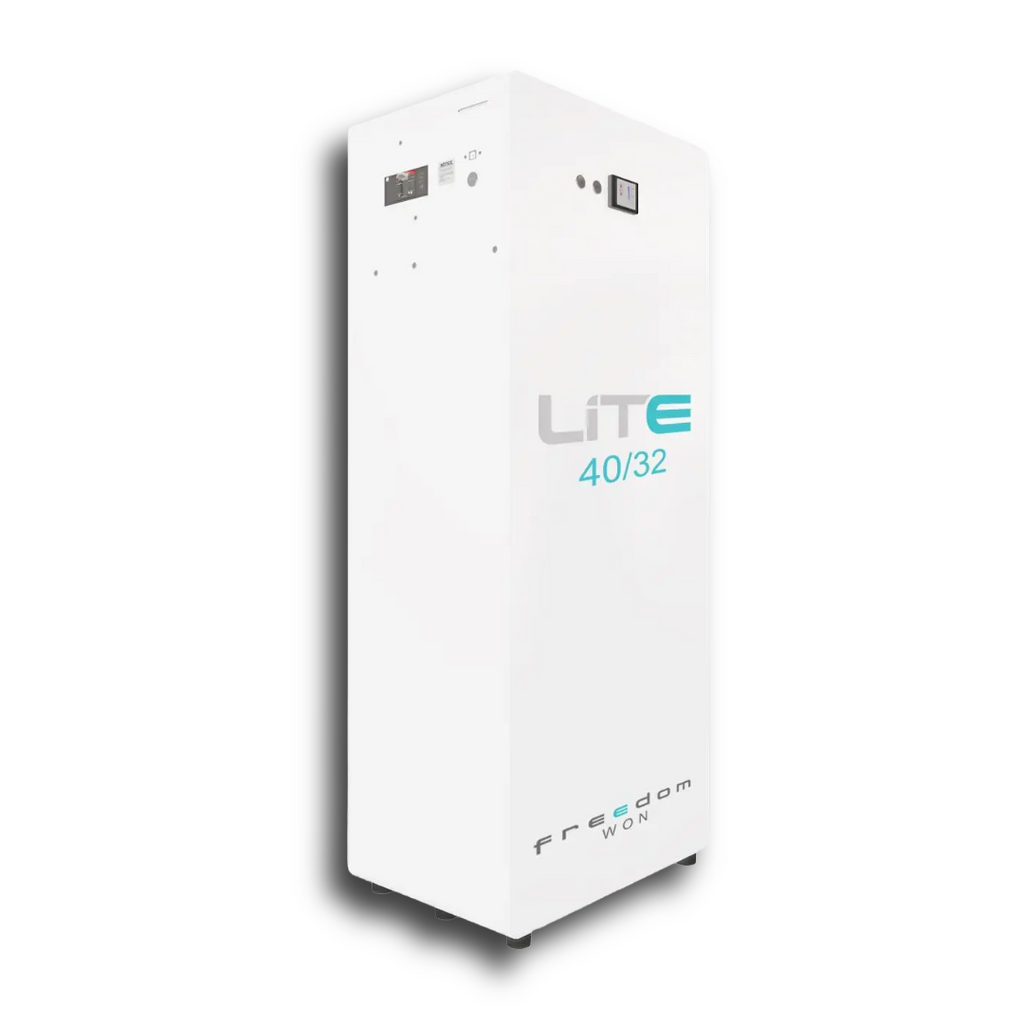

Freedom Won 40kWh LiTE Business 40/32 Lithium Battery - 52V

🆔 Models

Battery: Freedom Won LiTE Business 40/32 Lithium Battery - 52V

Includes

Integrated BMS with full protection suite
Aluminium indoor enclosure (IP20 rated)
Shunt Trip Circuit Breaker
USB communication cable (for PC connection)
CAN Bus termination resistor

Key Features

40kWh total energy capacity with high usable output
Compatible with 48V inverter systems (52V nominal)
High discharge capability (up to 38kW peak)
Advanced BMS with full fault protection and monitoring
Long lifespan with up to 20+ years expected service life
Built-in State of Charge display and diagnostics interface
Designed for larger residential, commercial, and business applications

Specifications

Specification	Details
Total Energy Capacity	40 kWh
Usable Energy (80% DoD)	32 kWh
Usable Energy (90% DoD)	36 kWh
Current Capacity	800 Ah
Nominal Voltage	52V (Min: 47V / Max: 56V)
Max / Continuous Charge Current	600 A
Max / Continuous Charge Power	30 kW
Max / Continuous Discharge Current	750 A / 600 A
Max / Continuous Discharge Power	38 kW / 30 kW
Max Recommended Inverter Size	25 kVA
Short Circuit Current	15 kA

Physical Specifications

Specification	Details
Dimensions (H×W×D)	1300 × 522 × 370 mm
Crated Dimensions	1396 × 786 × 568 mm
Weight	326 kg
Crated Weight	376 kg

Technical & Build

Specification	Details
DC Connection	2 × 95mm² Permopower fly leads per electrode
Enclosure	Aluminium, white coated, indoor (IP20)
Protection	Overcurrent, voltage, temperature, weak cell detection, SoC control
Circuit Breaker	Shunt trip with BMS integration
Control Interface	USB Serial + RJ45 (BMS & inverter comms)
User Interface	SOC display, error indicator, reset button

Additional Requirements

CAN Bus cable (RJ45 LAN) – required (not included)
Some inverters may require custom communication cable
Installation per manufacturer guidelines recommended

Quality & Support

Built for demanding applications, the Freedom Won LiTE Business 40/32 delivers high-capacity, reliable energy storage with advanced protection and long service life, making it ideal for commercial, industrial, and large-scale backup power systems.
