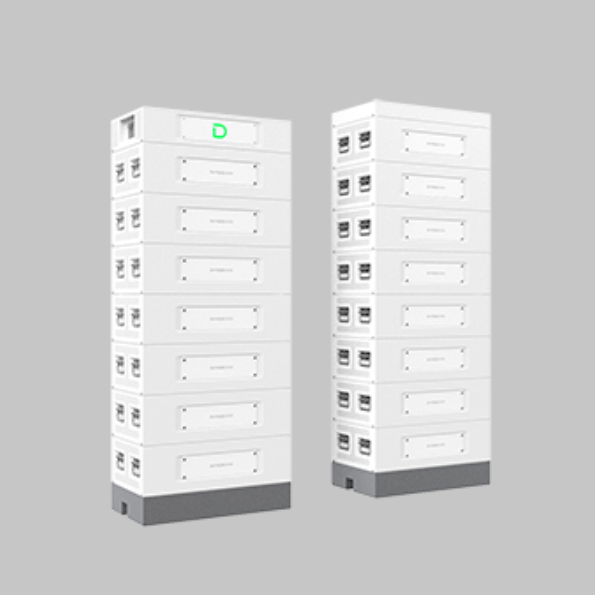

🔋 Dyness STACK314 64.304kWh Li-Ion Battery

Brand: Dyness
Type: Modular High-Voltage LiFePO₄ Stackable Battery Energy Storage System

INCLUDES:

• 1 × Dyness STACK314 BDU (Master BMS & Battery Disconnect Unit)
• 4 × Dyness STACK314 16.08kWh Battery Modules

⚡ Key Features

• Total system capacity of 64.304 kWh using four 16.08 kWh battery modules.
• High-voltage modular architecture designed for residential, commercial, and industrial energy storage applications.
• Scalable design supporting 4 to 15 modules per cluster, with expansion up to 241.14 kWh per cluster.
• Supports up to 12 clusters in parallel, providing a maximum system capacity of 2.89 MWh.
• High-capacity 314Ah LiFePO₄ battery modules deliver exceptional performance and long service life.
• Integrated aerosol fire-extinguishing system automatically detects and suppresses fire hazards within approximately 5 seconds.

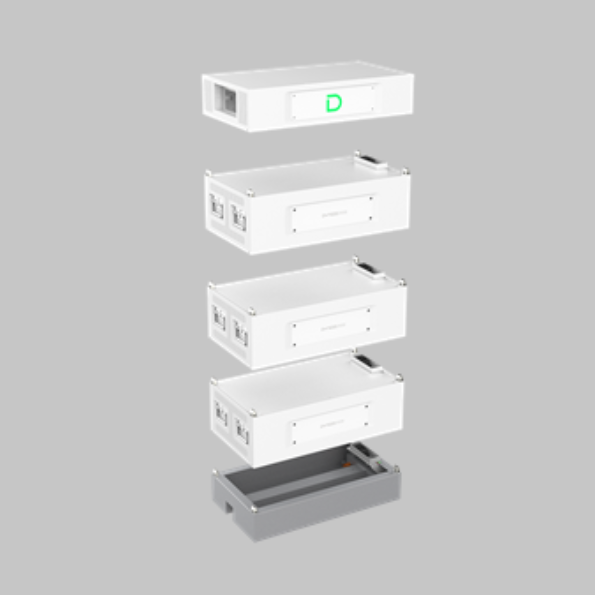

• Cable-free plug-and-play stacking design simplifies installation and future expansion.
• High-performance charging and discharging with up to 200A continuous current capability.
• Built-in Wi-Fi and APP monitoring for real-time system management and diagnostics.
• Supports CAN and RS485 communication protocols for seamless inverter integration.
• Long-life battery technology rated for 8,000+ cycles.
• Backed by a comprehensive 10-year warranty.

📐 Specifications (High-Level)

🏷️ Quality & Support

The Dyness STACK314 64.304kWh energy storage system delivers high-capacity, scalable battery storage for demanding residential, commercial, and industrial applications. Combining advanced LiFePO₄ technology, intelligent fire suppression, cable-free modular stacking, and industry-leading scalability, it provides a safe, reliable, and future-ready solution for hybrid, off-grid, and backup power installations. Designed for long-term performance and backed by a 10-year warranty, the STACK314 platform offers exceptional flexibility and dependable energy storage at scale.

STACK314 SPEC SHEET

INSTALLATION MANUAL
