Dyness STACK314 241.14kWh Li-Ion Battery - Full Cluster

R 571,649.00 R 589,000.00

Taxes included. Shipping calculated at checkout.

🔋 Dyness STACK314 241.14kWh Li-Ion Battery - Full Cluster

Brand: Dyness
Type: Modular High-Voltage LiFePO₄ Stackable Battery Energy Storage System

INCLUDES:

1 × Dyness STACK314 BDU (Master BMS & Battery Disconnect Unit)
15 × Dyness STACK314 16.08kWh Battery Modules

⚡ Key Features

Total system capacity of 241.14 kWh using fifteen 16.08 kWh battery modules.
Maximum single-cluster configuration supported by the Dyness STACK314 platform.
High-voltage architecture designed for large residential, commercial, industrial, agricultural, and microgrid energy storage applications.
Supports expansion of up to 12 clusters in parallel, providing a maximum system capacity of 2.89 MWh.
High-capacity 314Ah LiFePO₄ battery modules deliver exceptional energy density and long-term reliability.
Integrated aerosol fire-extinguishing system automatically detects and suppresses fire hazards within approximately 5 seconds.

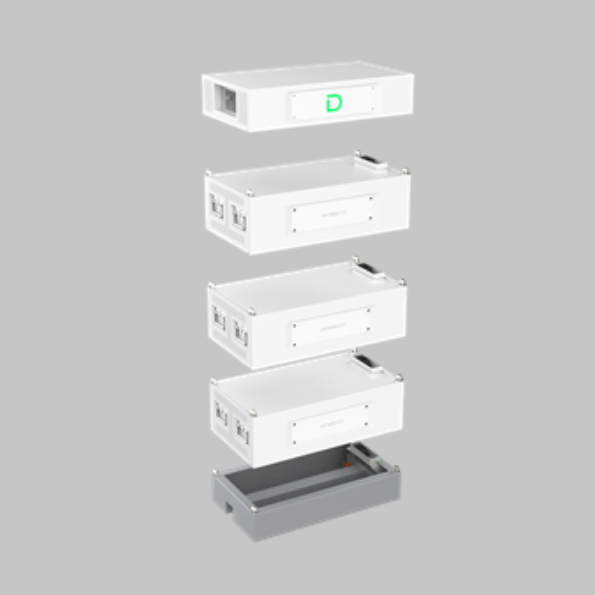

Cable-free plug-and-play stacking design simplifies installation, maintenance, and future expansion.
High-performance charging and discharging with up to 200A continuous current capability.
Built-in Wi-Fi and APP monitoring for real-time performance monitoring and remote management.
Supports CAN and RS485 communication protocols for seamless integration with leading high-voltage inverter platforms.
Module-mixing capability allows compatible battery modules manufactured within three years to be combined within the same system.
Premium LiFePO₄ battery technology delivers 8,000+ cycle life.
Comprehensive 10-year warranty for long-term peace of mind.

📐 Specifications (High-Level)

Specification	Value
Installed Capacity	241.14 kWh
Usable Capacity	229.08 kWh
Battery Chemistry	LiFePO₄ (LFP)
Module Specification	51.2V / 314Ah
Modules Included	15 × 16.08 kWh
Modules per Cluster	15 (Maximum)
System Voltage Range	134.4V – 864V
Recommended Charge/Discharge Current	140A
Maximum Continuous Charge/Discharge Current	200A
Peak Discharge Current	280A (2 Minutes)
Depth of Discharge (DoD)	95%
Communication	CAN / RS485
User Interface	Wi-Fi + APP
Cooling Method	Forced Air Cooling
Protection Rating	IP20
Cycle Life	8,000+ Cycles
Maximum Parallel Expansion	Up to 12 Clusters
Maximum System Capacity	Up to 2.89 MWh
Warranty	10 Years

🏷️ Quality & Support

The Dyness STACK314 241.14kWh Full Cluster system represents the maximum single-cluster configuration available within the STACK314 energy storage platform. Engineered for large-scale energy storage applications, it combines high-capacity LiFePO₄ battery technology, intelligent fire suppression, advanced battery management, and industry-leading scalability into a single integrated solution. Designed for demanding commercial, industrial, agricultural, and large residential installations, the STACK314 Full Cluster delivers exceptional reliability, safety, and long-term performance while providing a scalable pathway to multi-megawatt-hour energy storage systems.
