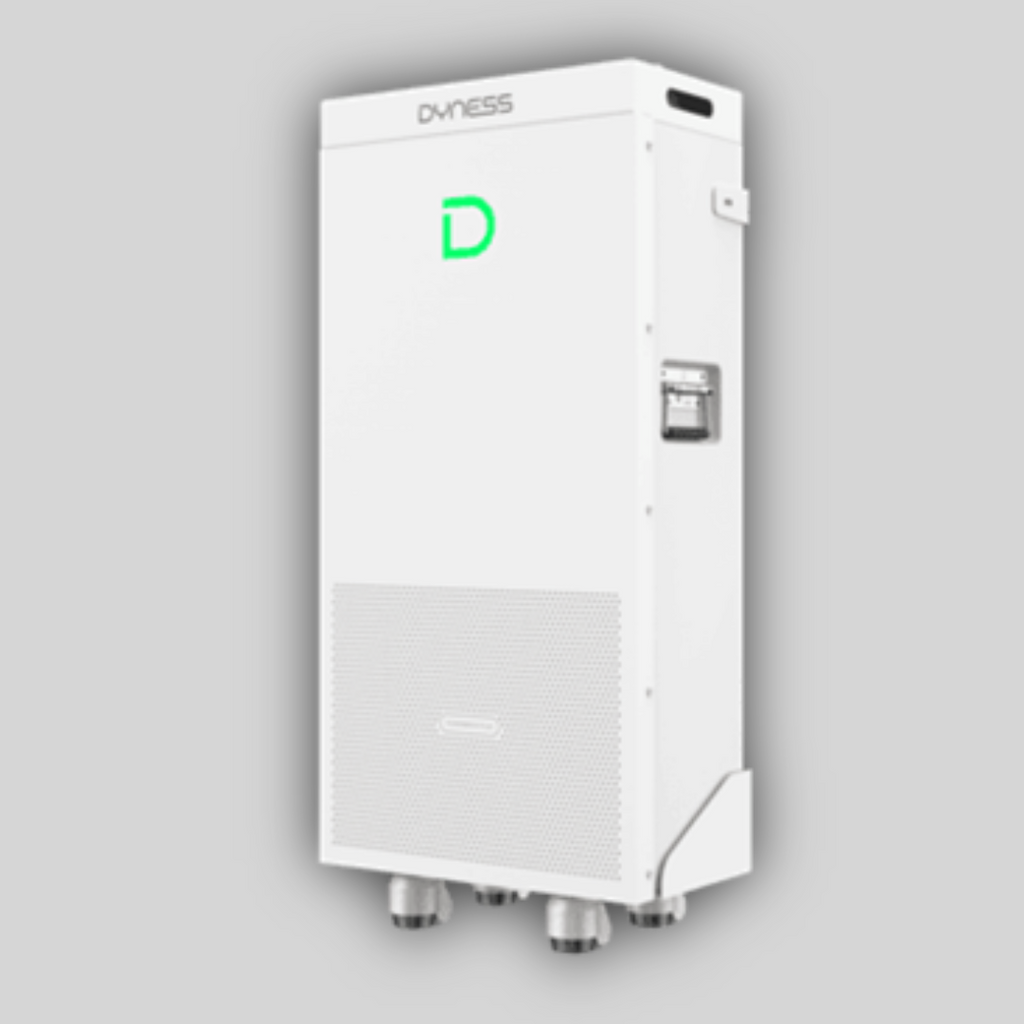

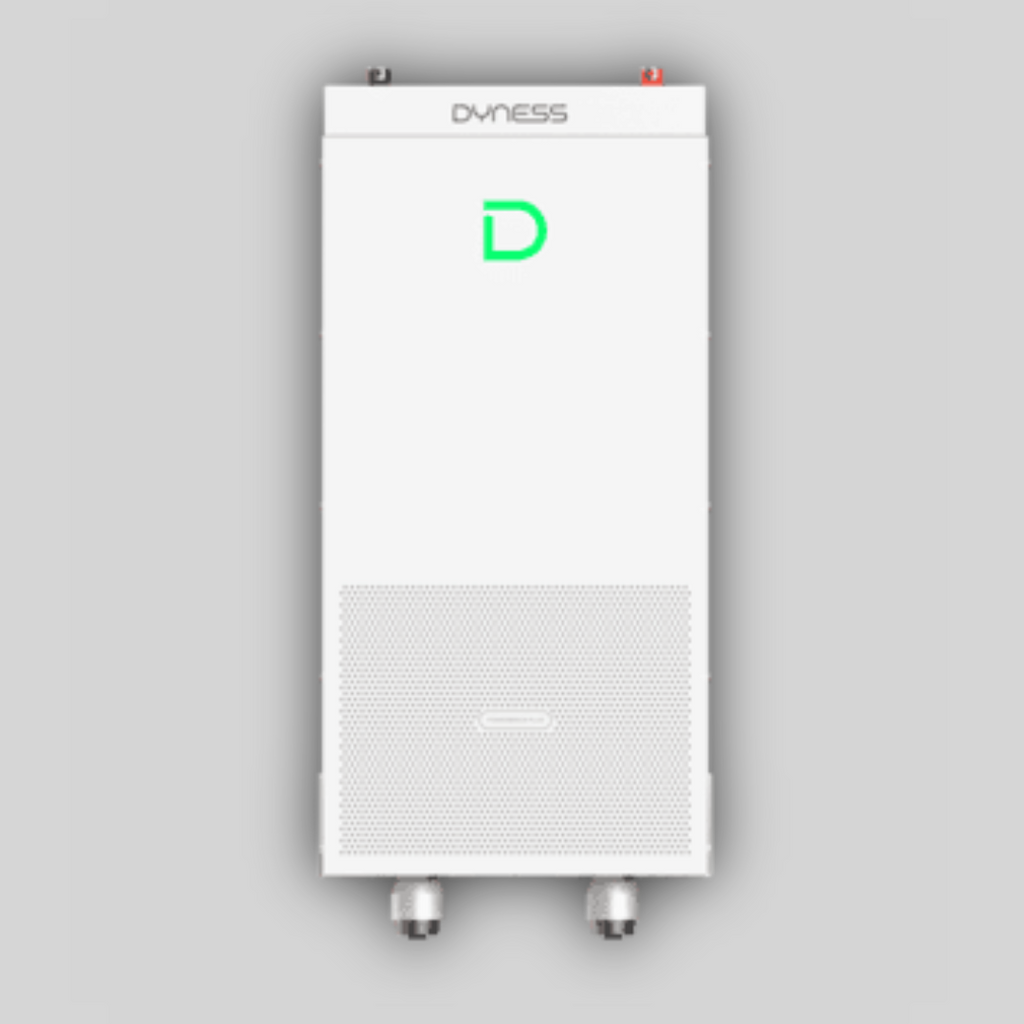

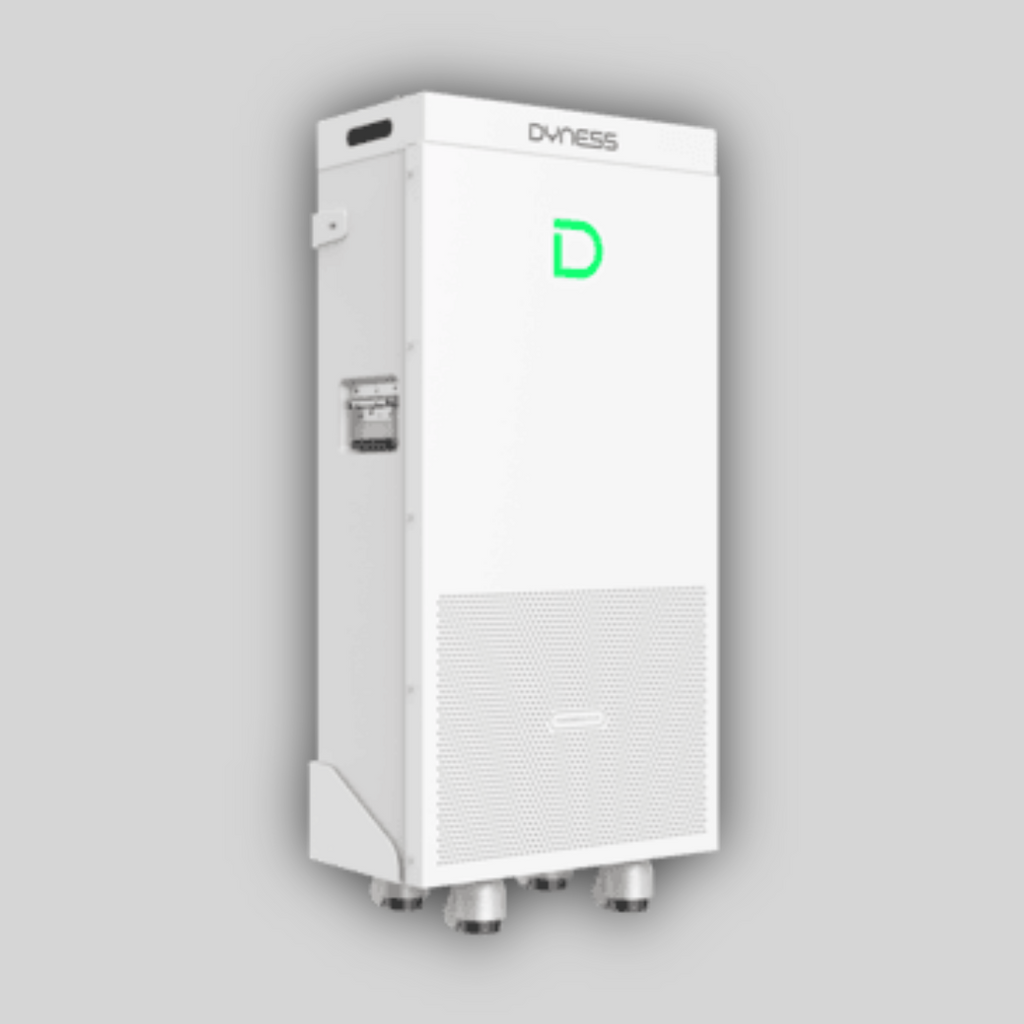

Dyness PowerBrick Plus 16.07kWh Lithium Battery - 51.2V

🆔 Models

Battery: Dyness PowerBrick Plus Lithium Battery – 16.07kWh

Includes

Dyness PowerBrick Plus Battery Unit
Integrated BMS with full protection suite
Built-in fire suppression system
Wi-Fi monitoring capability
Mounting support (wall or floor installation)

CONTENTS INSIDE THE BOX :

Battery Brackets included (left and right)
2 Fixing Brackets
50mm Battery Cables included (RED and Black)(2.005m)
6 Expansion Bolts
3 Screws
Positioning Cardboard
Packing List
6mm Ground Wire (50cm)
Warranty Card
Letter to Customer
Top Cover
Unlock Piece - Black
CAN resistor
Communication Cables for all inverters
Wheels are included
Heat Regulation System within the battery (For Optimal Outdoor Performance)

Key Features

16.07kWh total capacity with high usable energy output
High-capacity 314Ah LiFePO₄ cells for long lifespan
Supports up to 50 units in parallel (scalable up to ±803kWh)
High charge/discharge capability (up to 200A)
Built-in intelligent fire extinguishing system (response within 5 seconds)
Optional self-heating for cold environments (-20°C operation)
IP65-rated for indoor and outdoor installation
Easy installation with wall-mounted or floor-standing design (wheels included)
Wi-Fi + App monitoring for real-time system control
Wide inverter compatibility across major brands

Specifications

Specification	Details
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Nominal Energy	16.07 kWh
Usable Energy	15.27 kWh
Nominal Capacity	314 Ah
Nominal Voltage	51.2 V
Operating Voltage	44.8 – 57.6 V
Depth of Discharge	95%

Performance

Specification	Details
Recommended Charge/Discharge	0.45C (140A)
Max Charge Current	200 A
Max Discharge Current	200 A
Peak Discharge Current	300 A (2 min)
Recommended Power	7.168 kW
Max Charge Power	10.24 kW
Max Discharge Power	10.24 kW
Cycle Life	≥8000 cycles

Technical & Build

Specification	Details
Protection	Built-in BMS + aerosol fire suppression
Communication	CAN / RS485
Monitoring	Wi-Fi + Mobile App
IP Rating	IP65
Operating Temperature (Charge)	0°C to 55°C (-20°C optional)
Operating Temperature (Discharge)	-20°C to 55°C

Physical Specifications

Specification	Details
Dimensions (W×D×H)	435 × 235 × 850 mm
Weight	119 kg
Installation	Floor-mounted / Wall-mounted
Mobility	Integrated wheels

Compatibility

Compatible with major inverter brands including Deye, Victron, SMA, Goodwe, Growatt, Solis, and others
Suitable for residential and commercial energy storage systems
Ideal for solar hybrid and backup applications

Additional Information

Supports expansion up to 50 units in parallel
Optional accessories include heating module and top cover
Designed for both indoor and outdoor environments
Professional installation recommended

Quality & Support

The Dyness PowerBrick Plus delivers high-performance, scalable energy storage with advanced safety features and long lifespan, making it an excellent solution for residential and commercial solar battery systems.
