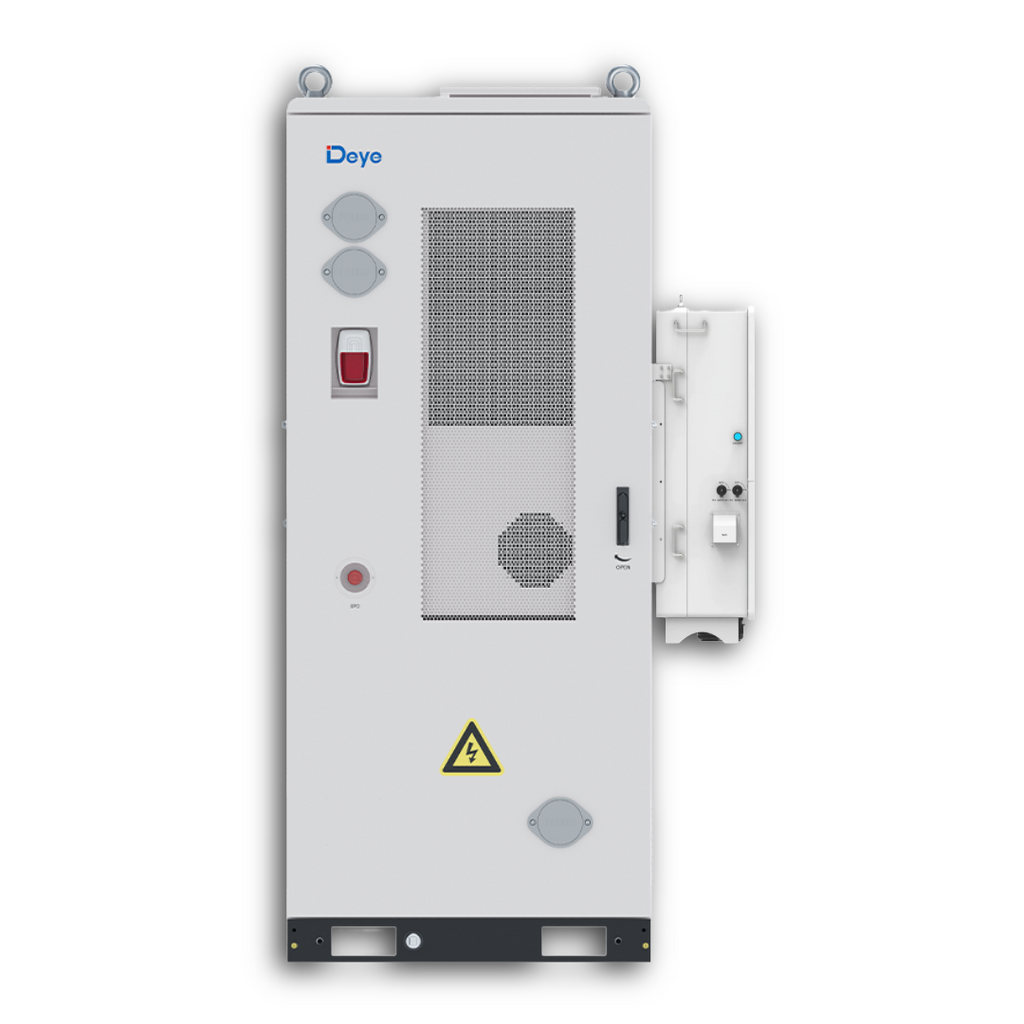

Deye GE-F128 128kWh Outdoor Battery Cabinet + 125kW Hybrid Inverter

🔋 Deye GE-F128 128.61kWh Outdoor Battery Cabinet + 125kW Hybrid Inverter

Battery Storage Model: GE-F128
Hybrid Inverter Model: SUN-125K-SG02HP3 (125kW 3-Phase High-Voltage Hybrid Inverter)
Brand: Deye
Type: High-Voltage Outdoor Commercial & Industrial (C&I) LiFePO₄ Battery Energy Storage Cabinet

⚡ Key Features

Complete commercial energy storage solution supplied with a 125kW Deye High-Voltage Hybrid Inverter.

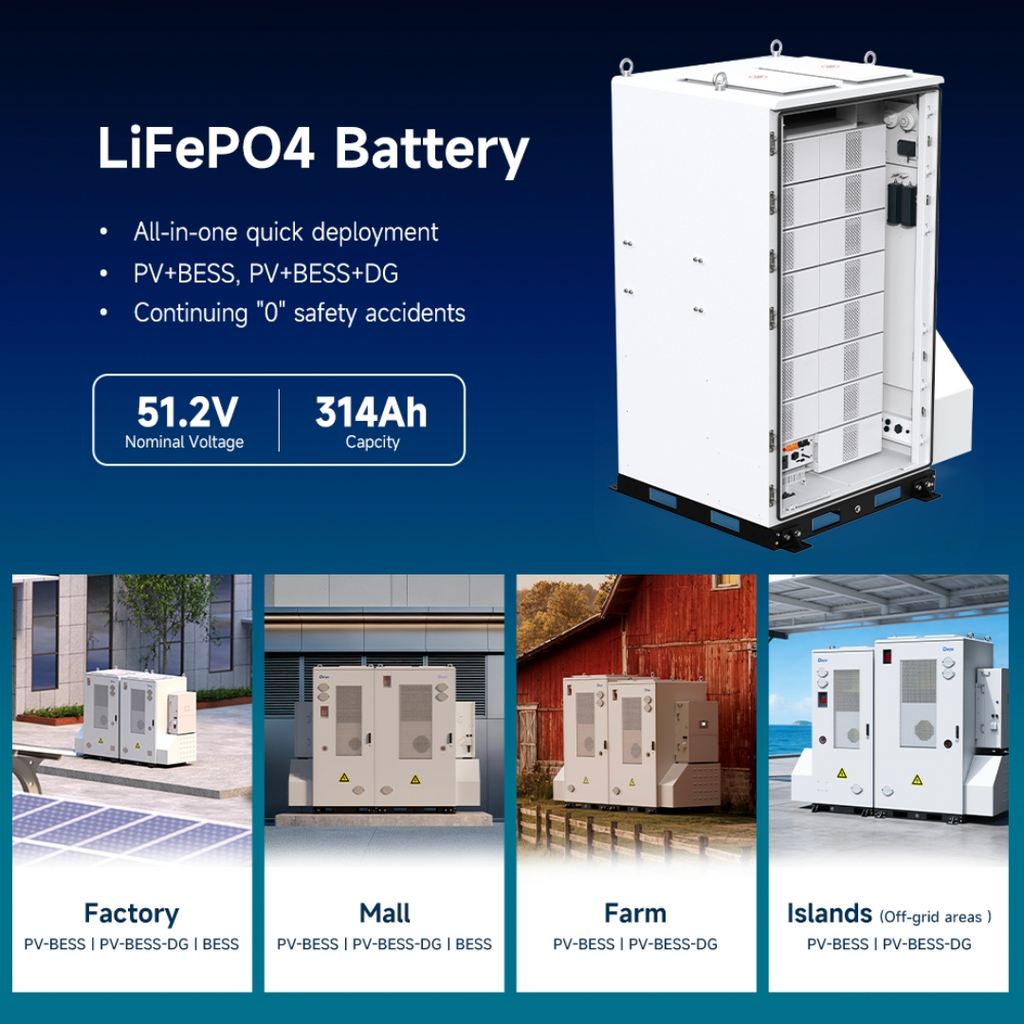

High-capacity 128.61kWh outdoor battery cabinet designed for commercial, industrial, agricultural, and large-scale backup power applications.
Built using premium LiFePO₄ (LFP) battery technology for outstanding safety, thermal stability, and long service life.
Integrated intelligent Battery Management System (BMS) continuously monitors cell voltage, temperature, and battery health.
Supports full-range 0.5P charging and discharging for stable high-power operation.
Delivers over 8,000 charge/discharge cycles for exceptional long-term reliability.
Intelligent air-cooling system maintains optimal battery temperatures with no power derating up to 45°C.

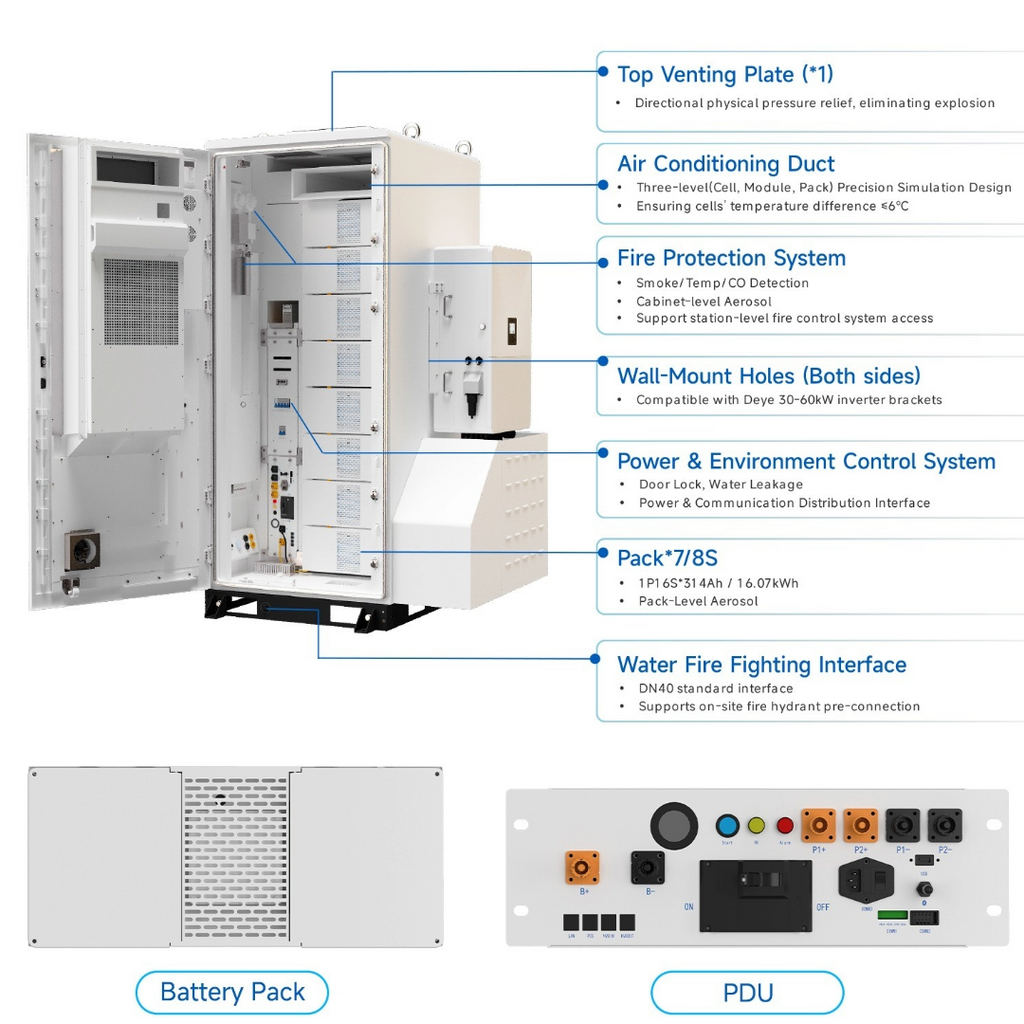

Advanced 6-dimensional fire protection system featuring CO gas detection, aerosol fire suppression, active exhaust, explosion venting, and water sprinkler interface.
Heavy-duty IP55-rated outdoor cabinet engineered for demanding environmental conditions.
Smart communication via CAN 2.0, RS485, Modbus485 and TCP/IP for seamless integration with Deye energy management systems.
Remote monitoring, diagnostics, and firmware management through the Deye mobile application.
Supports parallel expansion of multiple cabinets for larger commercial energy storage installations.
Factory-integrated cabinet simplifies transportation, installation, and commissioning.
Backed by a 10-year manufacturer warranty.

📐 Specifications

Specification	Value
Battery Chemistry	LiFePO₄ (LFP)
Configuration	Integrated Outdoor Battery Cabinet + 125kW Hybrid Inverter
Battery Module Capacity	314 Ah
Battery Module Voltage	51.2 V
Battery Modules	8 Modules (Series Configuration)
System Nominal Voltage	409.6 Vdc
Operating Voltage Range	320 – 467.2 Vdc
Nominal Energy	128.61 kWh
Usable Energy	128.61 kWh
Rated DC Power	64 kW
Continuous Charge / Discharge Current	180 A
Peak Discharge Current	285 A (15 Seconds)
Cycle Life	≥8,000 Cycles
Communication	CAN 2.0 / RS485 / Modbus485 / TCP/IP
Monitoring	Mobile App
Cooling Method	Intelligent Air Cooling
Protection Rating	IP55
Operating Temperature	-30°C to 55°C
Storage Temperature	0°C to 35°C
Operating Humidity	5% – 95% RH (Non-condensing)
Maximum Altitude	3000 m
Warranty	10 Years

📏 Physical Specifications

Specification	Details

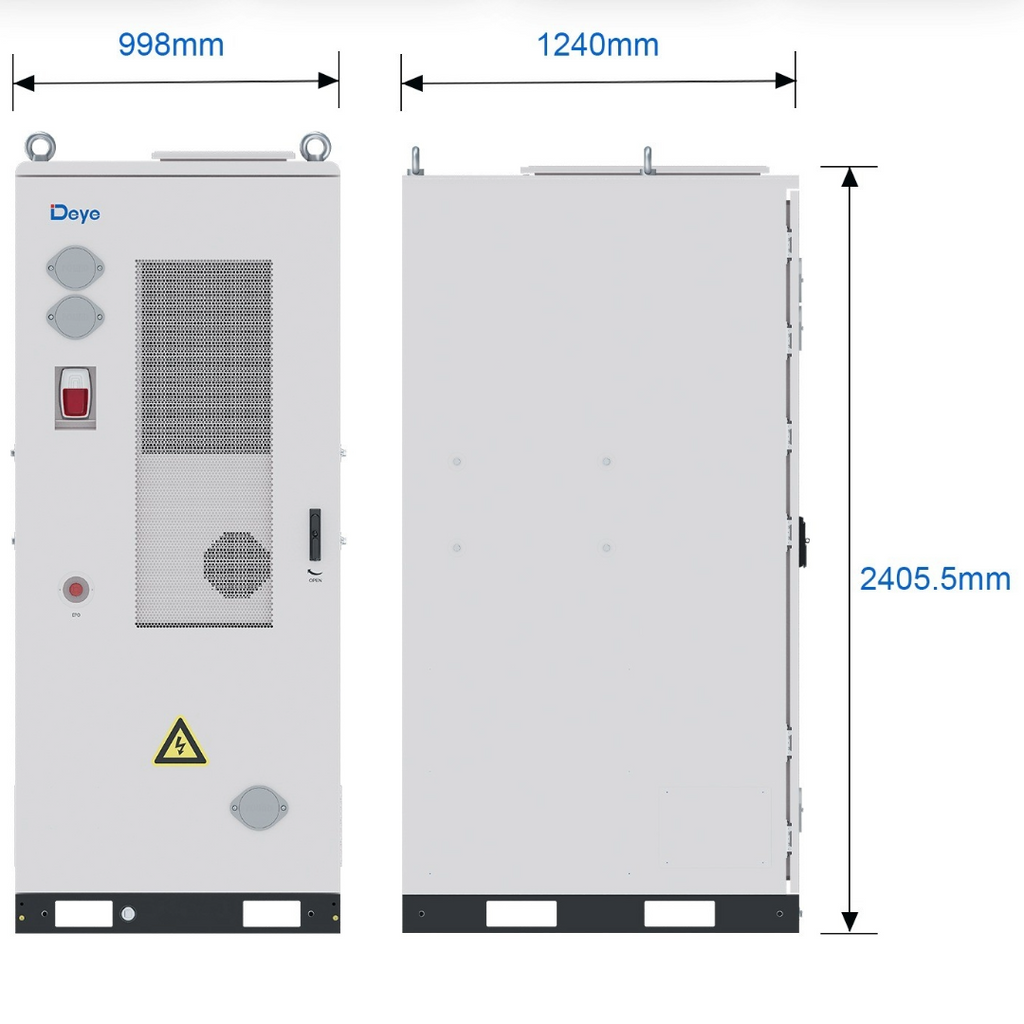

Cabinet Dimensions (W × D × H)	998 × 1240 × 2405.5 mm
System Weight	Approximately 1690 kg
Mounting	Floor Mounted
Enclosure	Outdoor Weatherproof Cabinet
Corrosion Protection	C4-M (Upgradeable to C5)

🔧 Technical & Build

Specification	Details
System Type	Outdoor Commercial & Industrial Battery Energy Storage System

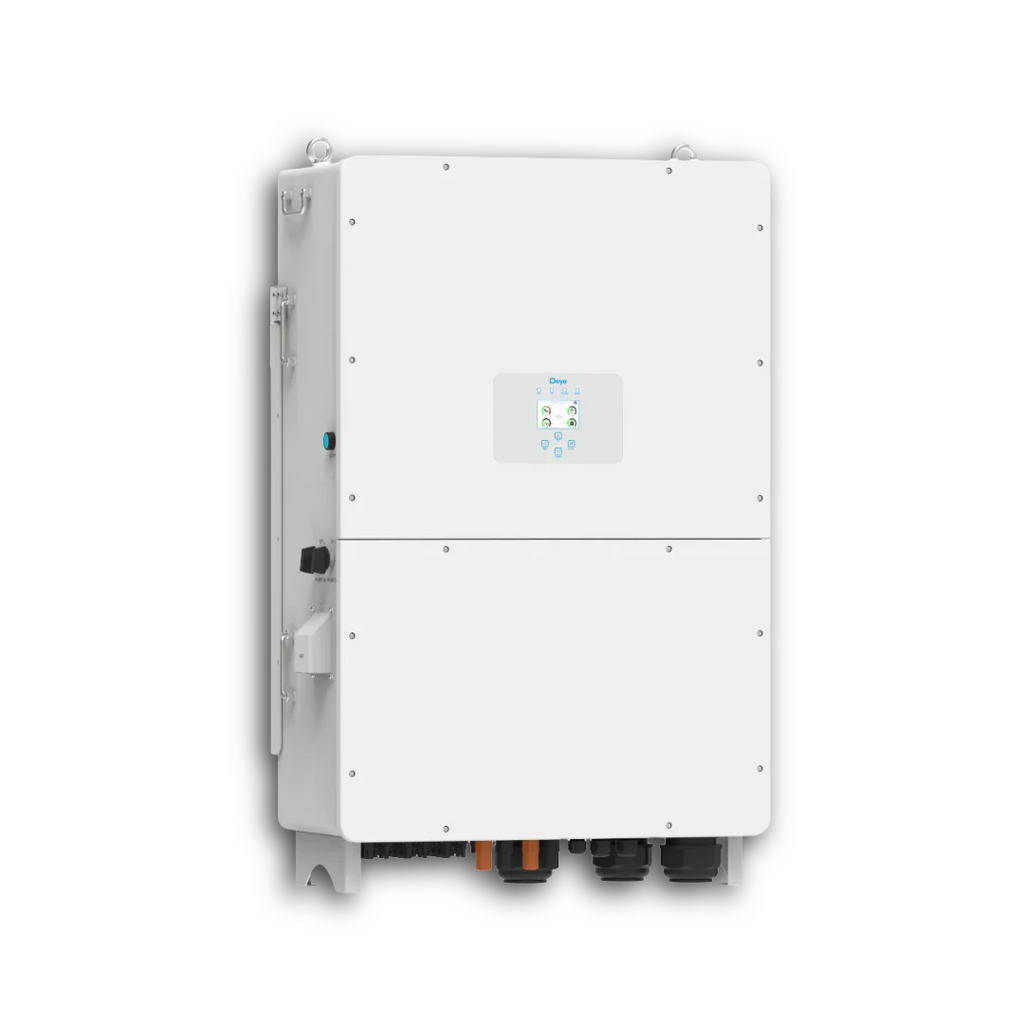

Hybrid Inverter	Deye SUN-125K-SG02HP3 (125kW HV Hybrid Inverter)
Battery Management	Intelligent High-Voltage BMS
Cooling	Intelligent Air Cooling

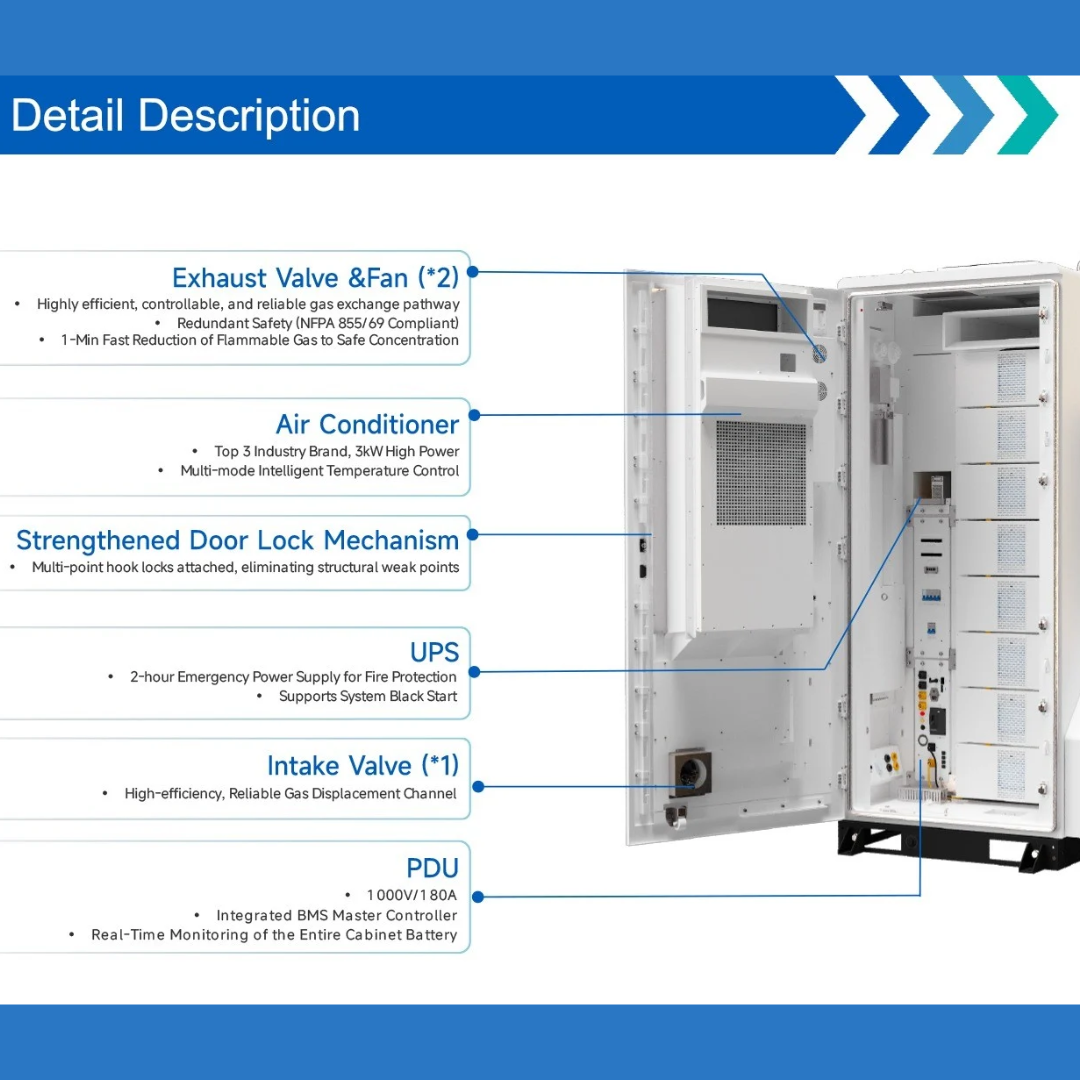

Fire Protection	CO Detection, Aerosol Suppression, Active Exhaust, Explosion Venting & Water Sprinkler Interface
Installation	Outdoor Floor Mounted
Communication Protocols	CAN 2.0 / RS485 / Modbus485 / TCP/IP

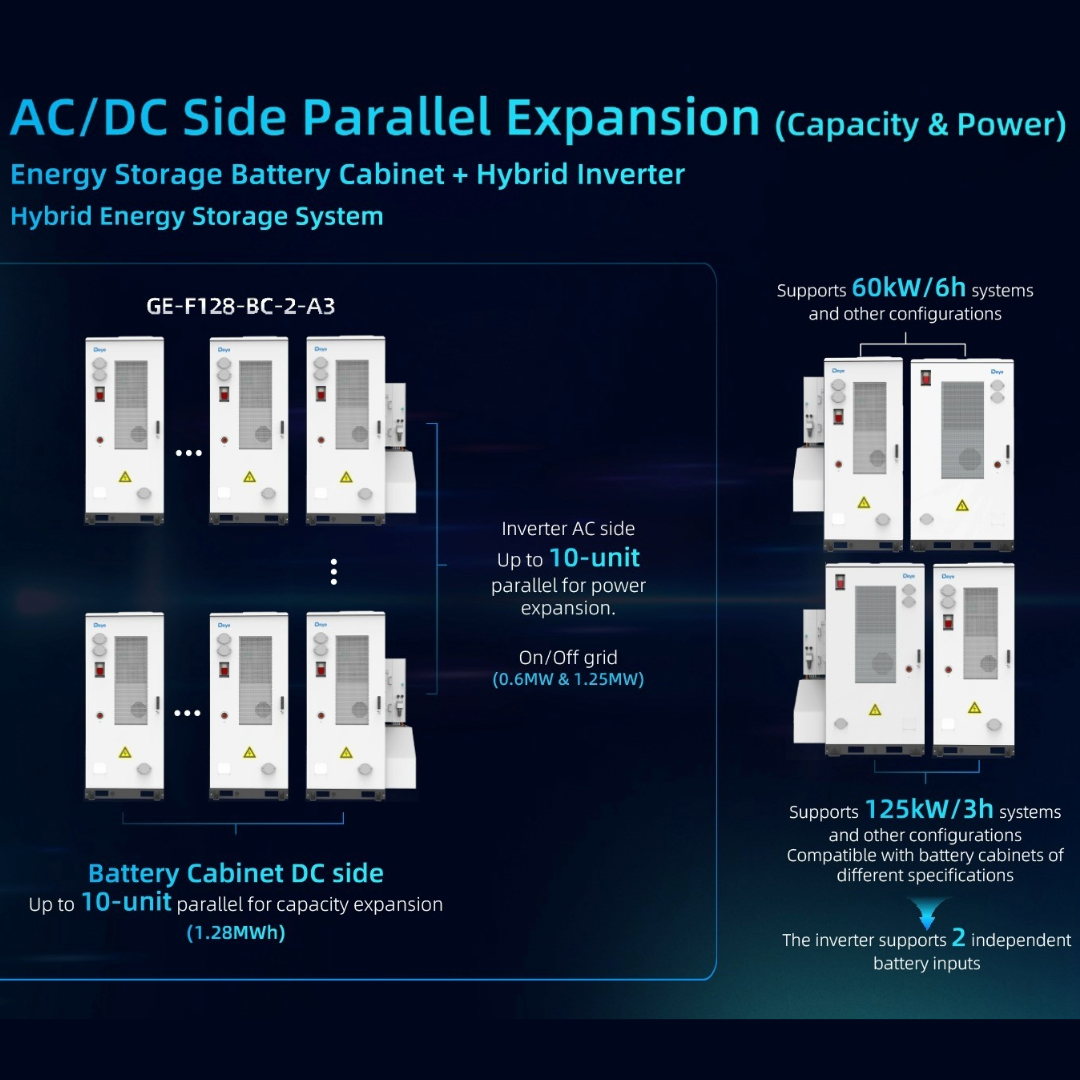

Parallel Expansion	Up to 10 Cabinets (DC or AC Side)
Application	Commercial Buildings, Factories, Warehouses, Agriculture, Microgrids, Peak Shaving, Backup Power & Renewable Energy Storage

📦 What's Included

1 × Deye GE-F128 Outdoor IP55 Battery Cabinet
1 × Deye SUN-125K-SG02HP3 125kW High-Voltage Hybrid Inverter
8 × 314Ah LiFePO₄ High-Voltage Battery Modules
Integrated High-Voltage Battery Management System (BMS)
Intelligent Air Cooling System
Integrated Fire Protection System
Internal High-Voltage Busbars and Pre-Wired DC Cabling
Communication Wiring
External Inverter Mounting Brackets
Factory-Assembled Outdoor Enclosure

ℹ️ Additional Information

The GE-F128 is engineered as a fully integrated commercial energy storage solution, combining high-voltage battery storage, intelligent battery management, thermal regulation, and comprehensive fire protection within a single outdoor-rated enclosure. The supplied 125kW Deye Hybrid Inverter enables efficient management of solar generation, battery storage, generator integration, peak shaving, load shifting, and backup power.

Its modular architecture allows multiple cabinets to operate in parallel, making it suitable for commercial facilities, manufacturing plants, agricultural operations, office parks, shopping centres, microgrids, and industrial energy storage projects requiring reliable, scalable energy management.

Professional installation and commissioning are recommended to ensure optimal performance and warranty compliance.

🏷️ Quality & Support

The Deye GE-F128 128.61kWh Outdoor Battery Cabinet + 125kW Hybrid Inverter delivers a complete commercial energy storage solution that combines premium LiFePO₄ battery technology with intelligent energy management, advanced thermal control, and comprehensive fire protection. Designed for demanding commercial and industrial applications, it offers exceptional efficiency, outstanding reliability, and seamless integration with renewable energy systems. Backed by a 10-year manufacturer warranty and over 8,000 operating cycles, the GE-F128 provides dependable long-term performance for hybrid, backup, and large-scale energy storage installations.
