Deye BOS-G Pro 5.12kWh Battery
Sale price
R 16,549.00
Regular price R 17,825.00
Taxes included.
Shipping calculated at checkout.

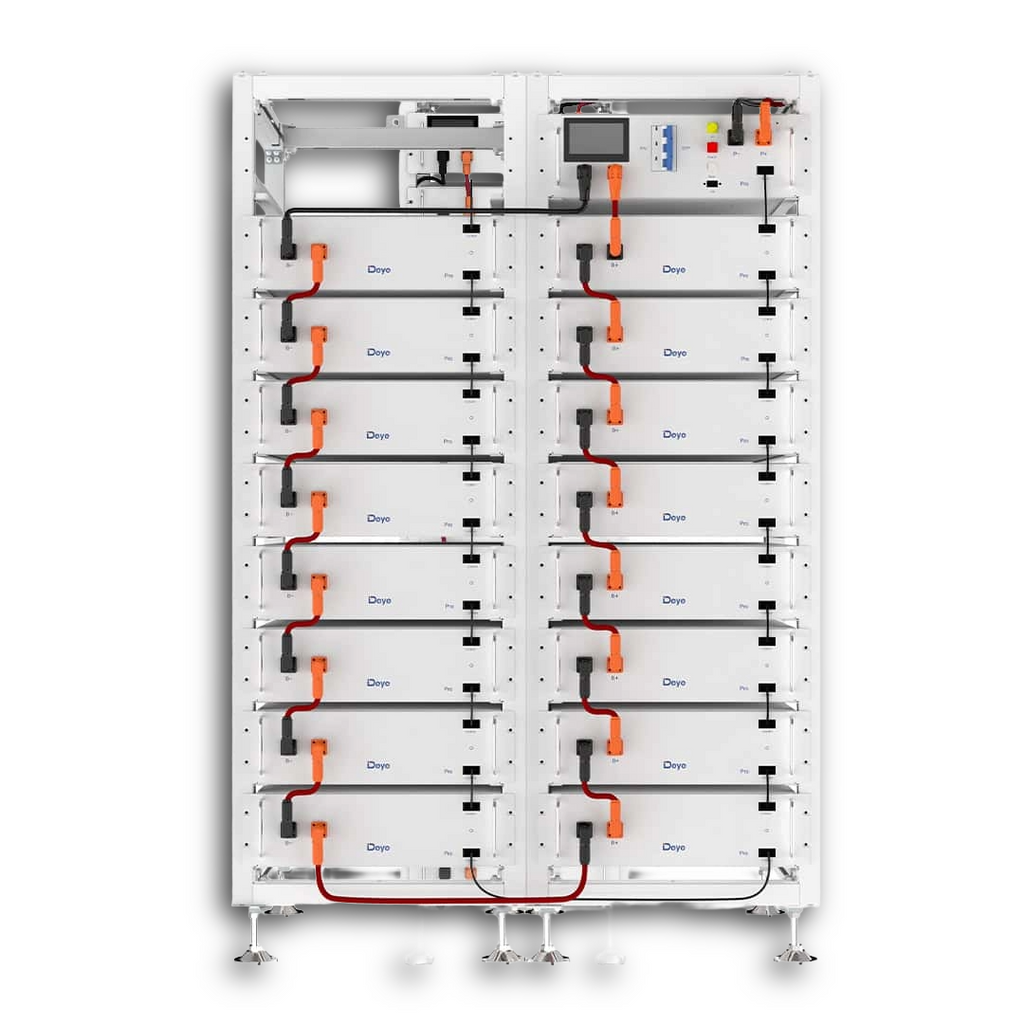

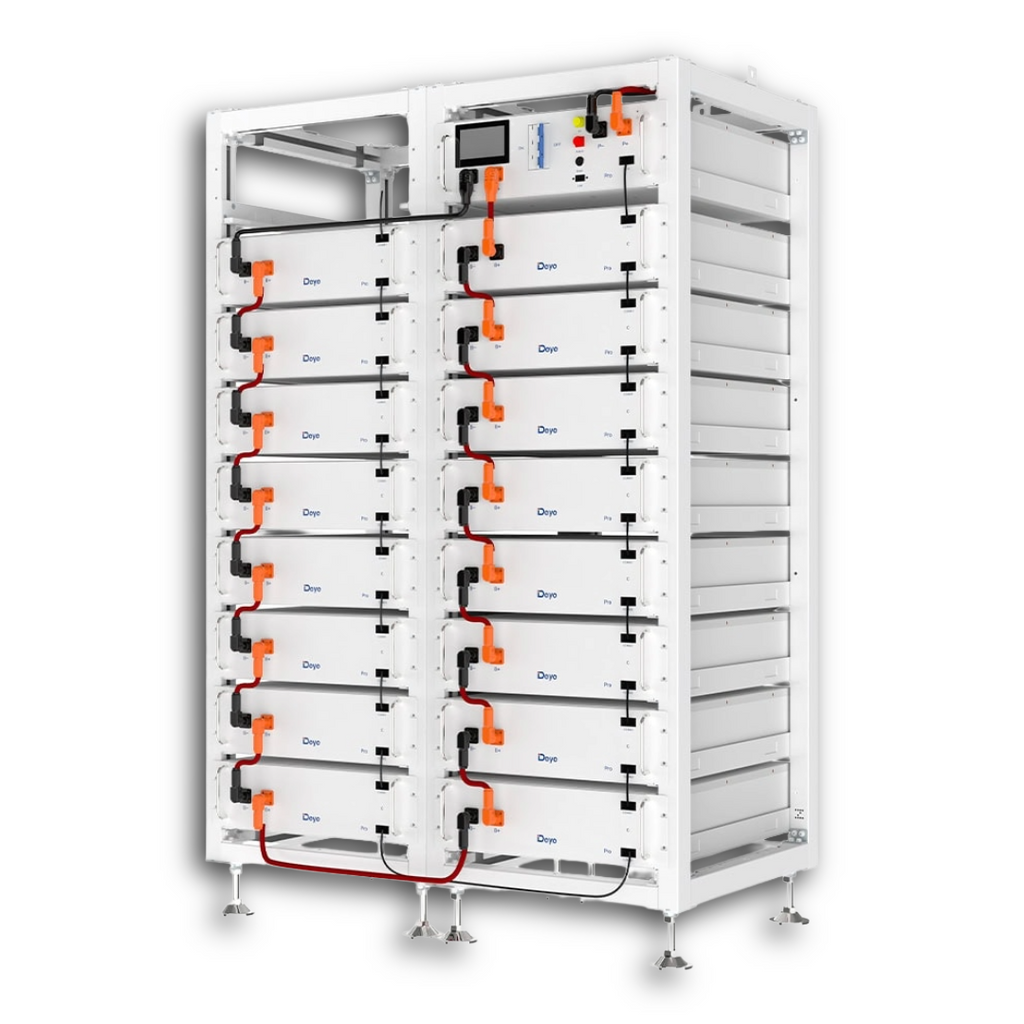

π Deye BOS-G-Pack5.1 5.12kWh High-Voltage Battery Module
Model: BOS-G-Pack5.1
Brand: Deye
Type: High-Voltage LiFePOβ Rack-Mounted Battery Module
β‘ Key Features
- 5.12kWh high-voltage lithium battery module designed for Deye BOS-G Pro energy storage systems.
- Premium LiFePOβ (LFP) battery chemistry provides excellent safety, thermal stability, and long service life.
- Modular design allows flexible system expansion from small commercial installations to multi-megawatt energy storage systems.
- Compatible with Deye BOS-G25 Pro, BOS-G40 Pro, BOS-G60 Pro, and BOS-G80 Pro battery systems.
- Supports high charge and discharge currents for demanding applications.
- Intelligent cell balancing and protection are managed through the system BMS and PDU.
- Low self-discharge characteristics allow extended storage periods.
- Rack-mounted design enables quick installation and simplified maintenance.
- Environmentally friendly battery technology with no memory effect.
- Designed for commercial, industrial, and large residential energy storage applications.
- Long service life with over 6,000 operating cycles.
- Backed by a 10-year warranty.
π Specifications
| Specification | Value |
|---|---|
| Battery Chemistry | LiFePOβ (LFP) |
| Nominal Voltage | 51.2 V |
| Rated Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Nominal Charge Current | 100 A |
| Nominal Discharge Current | 100 A |
| Peak Discharge Current | 120 A |
| Charge Temperature | 0Β°C to 55Β°C |
| Discharge Temperature | -20Β°C to 55Β°C |
| Storage Temperature | 0Β°C to 35Β°C |
| Cycle Life | β₯ 6,000 Cycles |
| Recommended Depth of Discharge | 90% |
| Protection Rating | IP20 |
| Installation | Rack Mounted |
| Warranty | 10 Years |
π Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W Γ D Γ H) | 440 Γ 585 Γ 133 mm |
| Weight | Approximately 46 kg |
| Installation Type | 19-inch Rack Mount |
| Cooling Method | Natural Cooling |
π§ Technical & Build
| Specification | Details |
|---|---|
| System Type | High-Voltage Battery Module |
| Battery Management | Managed by BOS-G PDU |
| Communication | Via System CAN / RS485 |
| Expansion Capability | Up to 16 modules per battery cluster |
| Module Compatibility | Deye BOS-G Pro Systems |
| Installation Environment | Indoor |
| Application | Commercial, industrial, and residential ESS |
βΉοΈ Additional Information
- Designed exclusively for Deye BOS-G high-voltage battery systems.
- Requires a compatible BOS-G-PDU control unit for operation.
- Multiple modules are connected in series to create complete high-voltage battery systems.
- Supports flexible system sizing depending on energy storage requirements.
- Ideal for commercial buildings, factories, agricultural facilities, and large backup systems.
- Professional installation and commissioning are recommended.
π·οΈ Quality & Support
The Deye BOS-G-Pack5.1 battery module forms the foundation of the Deye BOS-G Pro high-voltage energy storage platform. Utilizing advanced LiFePOβ technology, it delivers outstanding safety, long cycle life, and reliable performance. Its modular design allows flexible system expansion while maintaining high efficiency and dependable operation for commercial, industrial, and large-scale energy storage applications.
