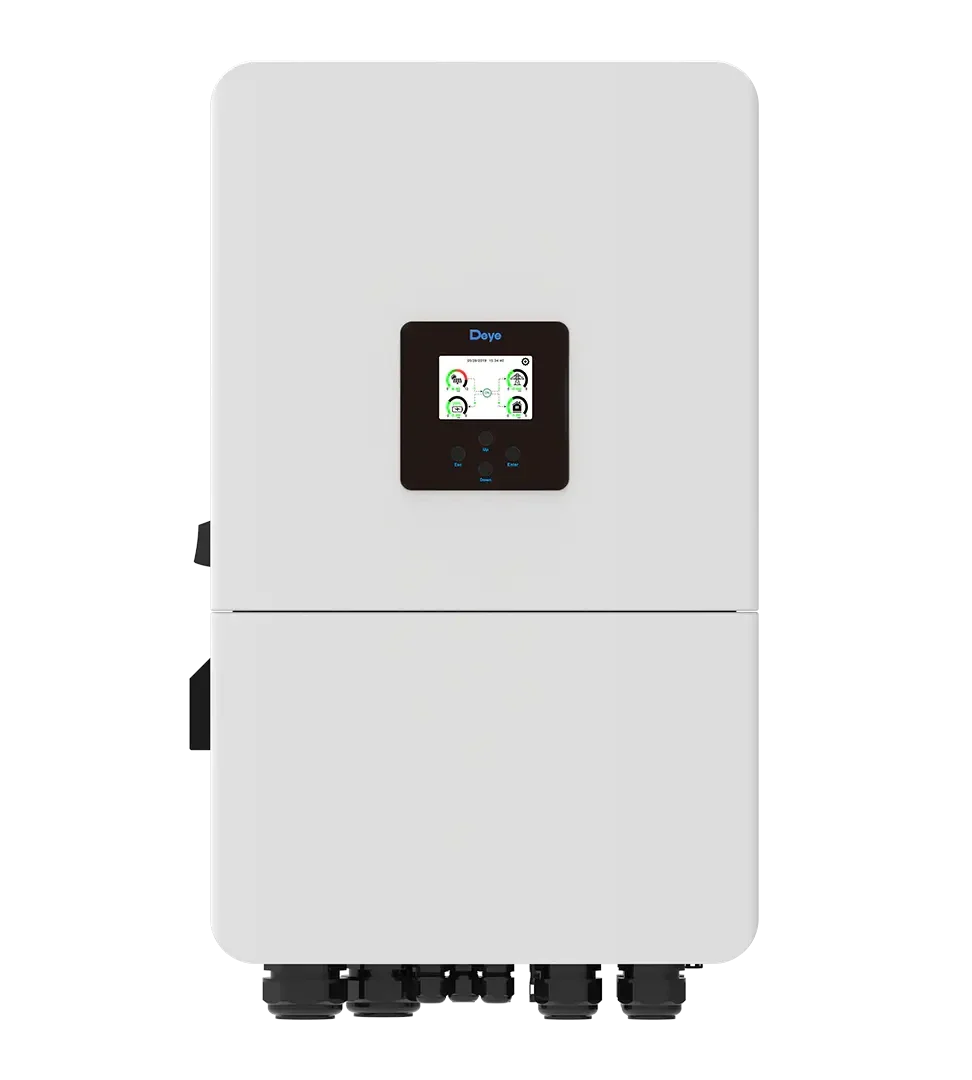

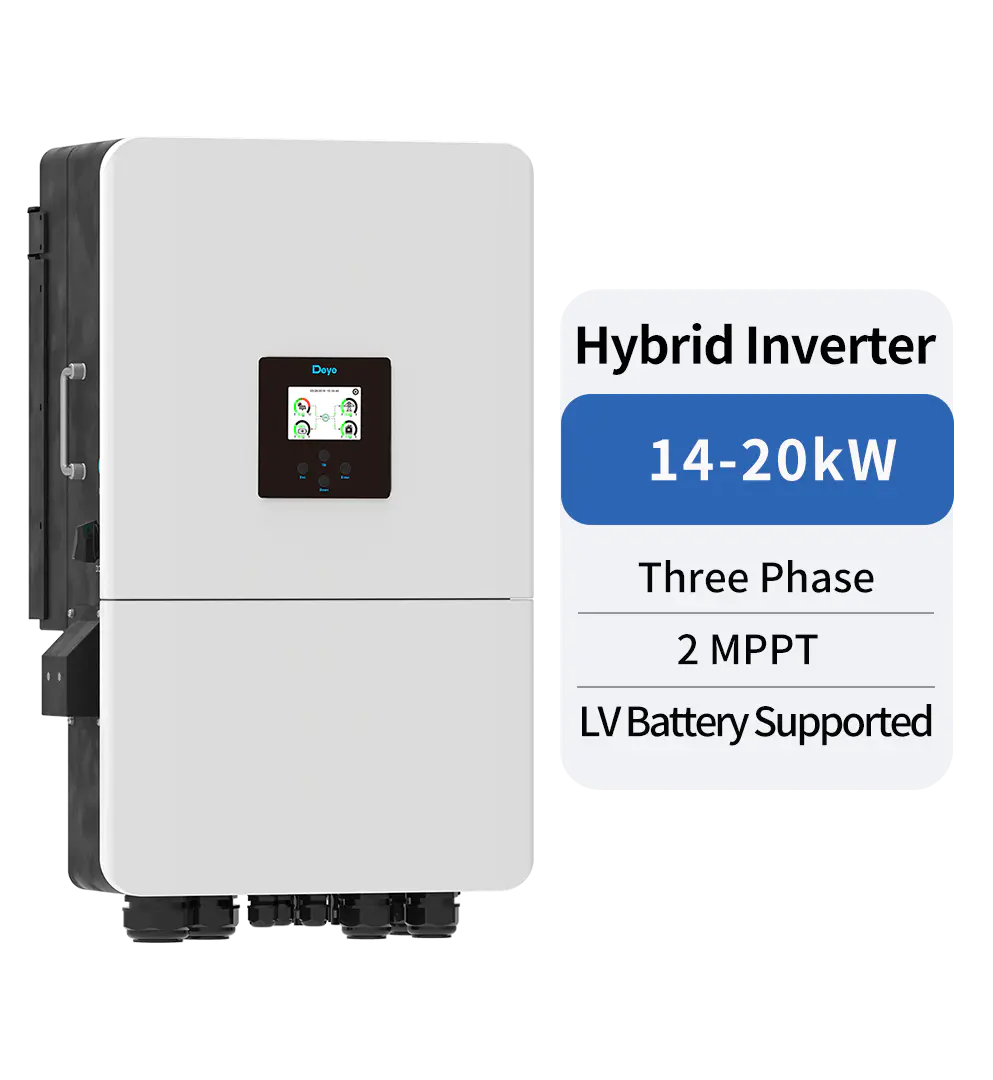

Deye 20kW Hybrid Inverter 3P (LV) v2

R 47,050.00 R 57,800.00

Taxes included. Shipping calculated at checkout.

🔌 Deye SUN-20K-SG05LP3-EU-SM2 – 20 kW 3-Phase Hybrid Inverter

Brand: Deye
Model: SUN-20K-SG05LP3-EU-SM2
Type: Three-Phase Hybrid Inverter (Solar + Low-Voltage Battery + Grid)

⚡ Key Features

• 20 kW three-phase rated output — suitable for large residential, commercial, or industrial solar + storage systems.
• Low-voltage battery compatibility — supports 48 V battery systems (typically 40–60 V) with high charge and discharge capability.
• Hybrid functionality — integrates solar PV generation, battery storage, and grid interaction in one system.
• Dual MPPT trackers — allows flexible solar string configuration and improved energy harvesting.
• Wide PV operating range — supports high-voltage solar strings for larger PV arrays.
• 100% unbalanced output support — each phase can operate independently for flexible load distribution.
• Parallel capability — multiple inverters can be connected for larger system capacity.
• IP65 rated enclosure — suitable for indoor or outdoor installations in demanding environments.
• Smart monitoring — supports WiFi, RS485, and CAN communication for remote monitoring and system management.

📐 Technical Specifications

Specification	Value
Model	SUN-20K-SG05LP3-EU-SM2
Rated AC Output Power	20 kW
Grid Type	Three-Phase
Number of MPPTs	2
Max PV Input Power	~26 kW
Max PV Input Voltage	800 V
MPPT Voltage Range	160 – 650 V
Battery Voltage Range	40 – 60 V
Max Battery Charge / Discharge Current	350 A
Maximum Efficiency	~97.6%
Unbalanced Load Capability	100% per phase
Parallel Operation	Up to 10 units
Protection Rating	IP65
Operating Temperature	−40 °C to +60 °C
Dimensions (W × H × D)	456 × 750 × 268.5 mm
Weight	~50.6 kg
Communication	WiFi / RS485 / CAN
Warranty	Standard manufacturer warranty

🏷️ Quality & Support

The Deye 20 kW three-phase hybrid inverter is designed for high-capacity solar systems that require integrated battery storage and grid interaction. With dual MPPT tracking, strong low-voltage battery support, and scalable parallel capability, it delivers efficient energy management and reliable backup power for large residential and commercial installations.
