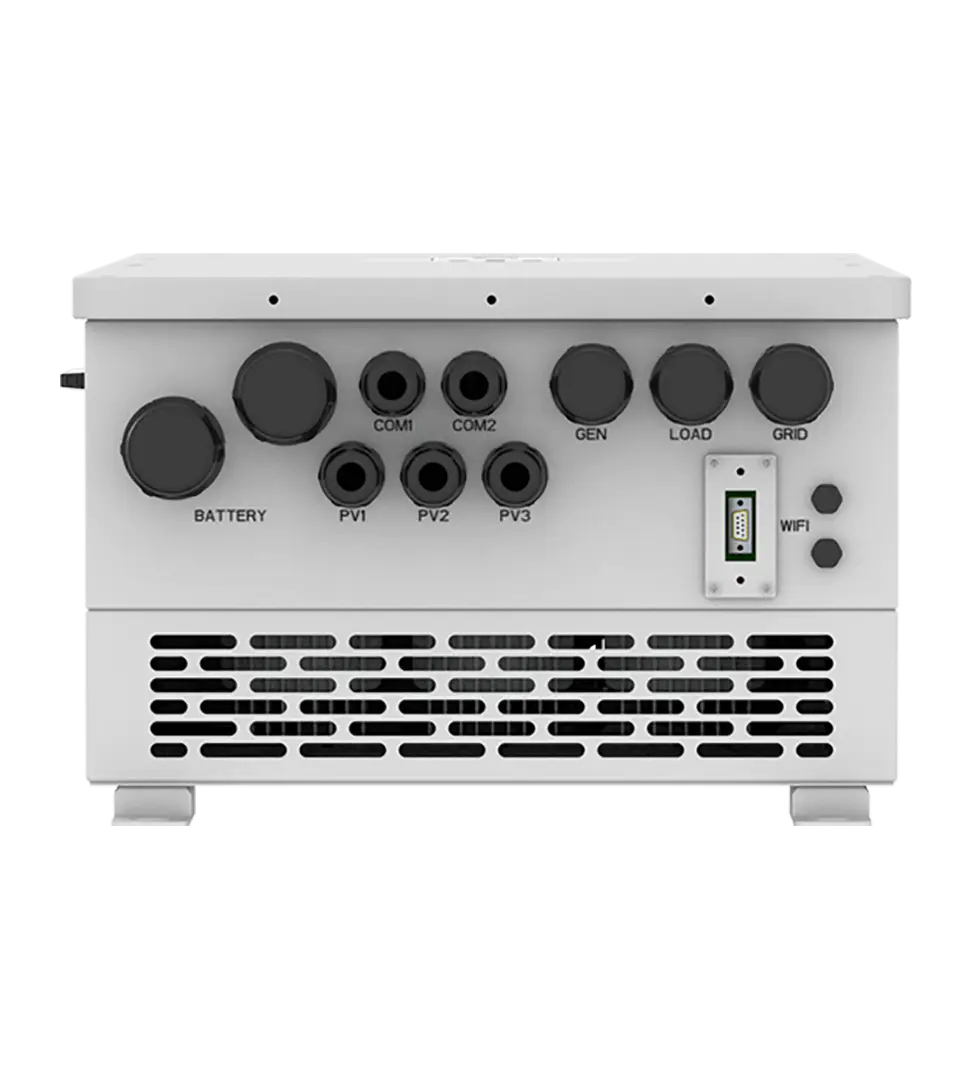

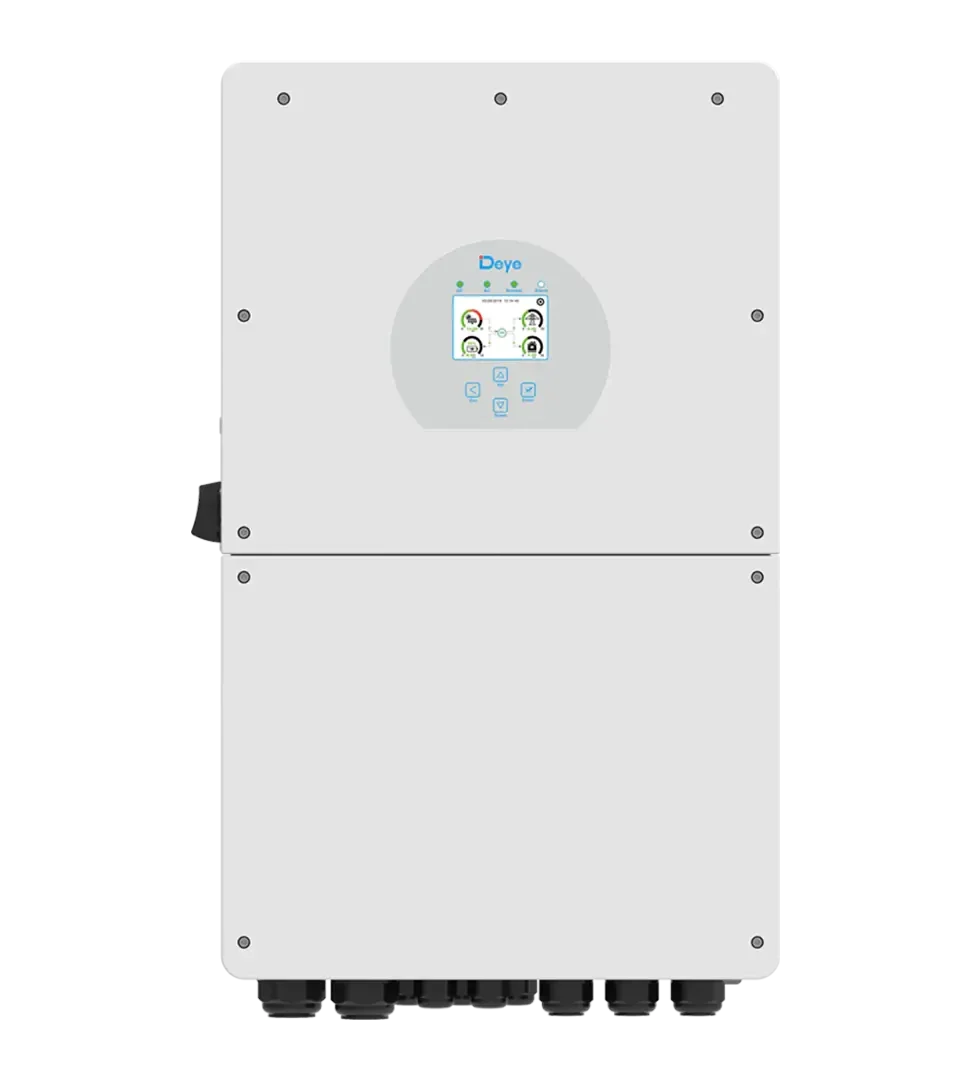

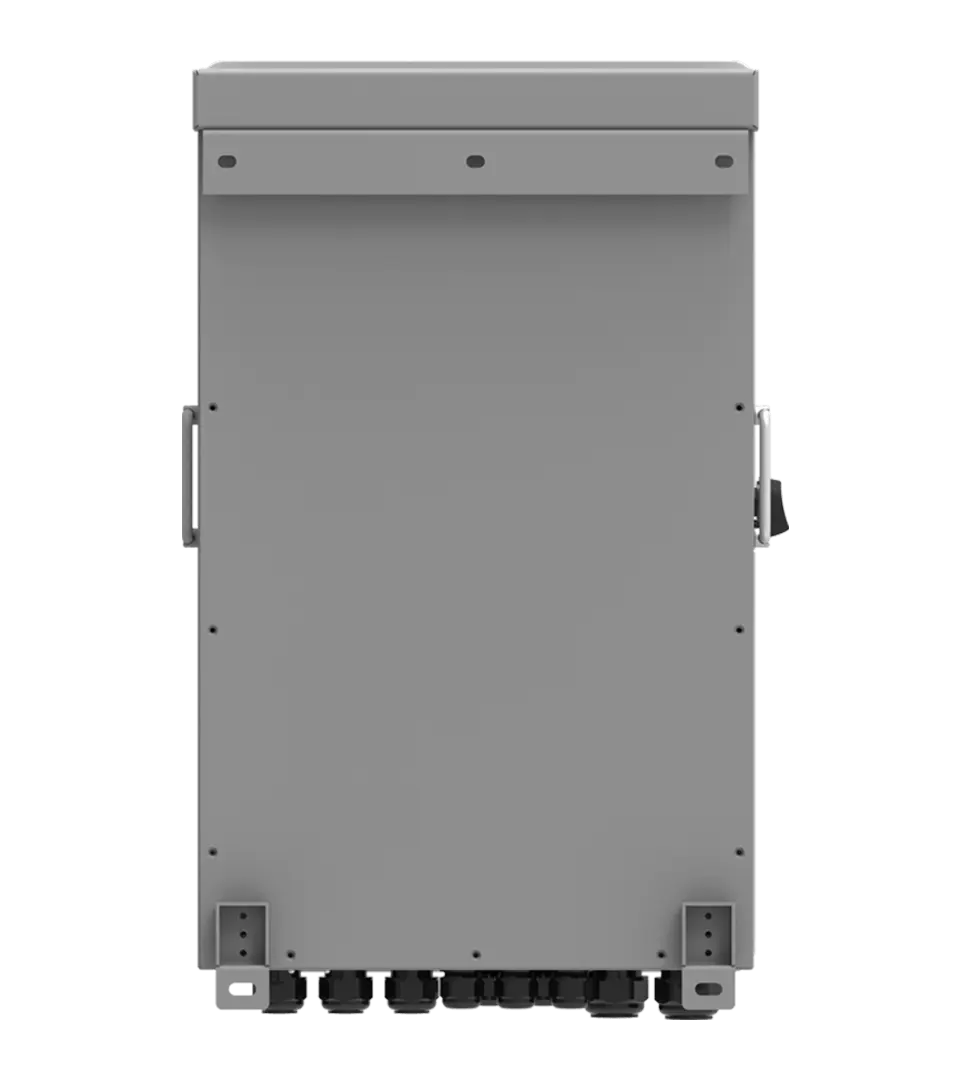

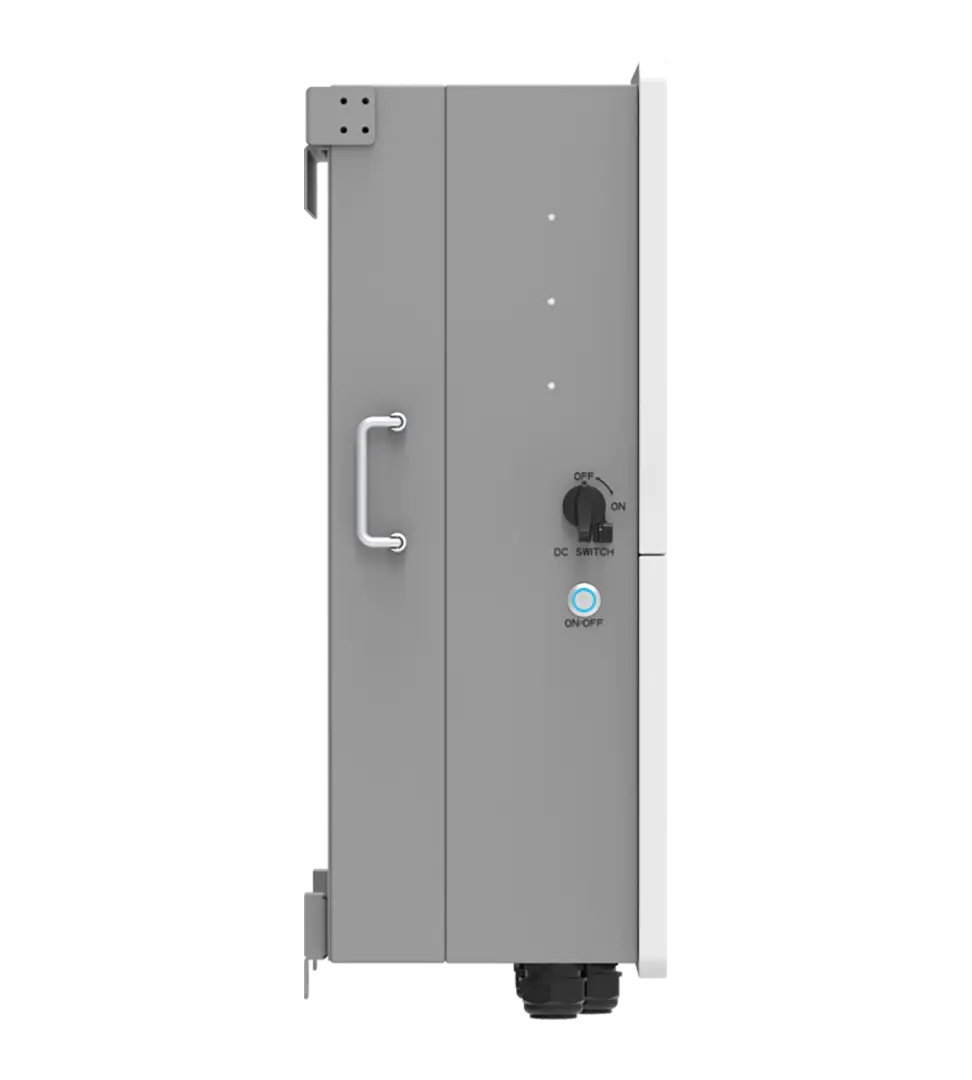

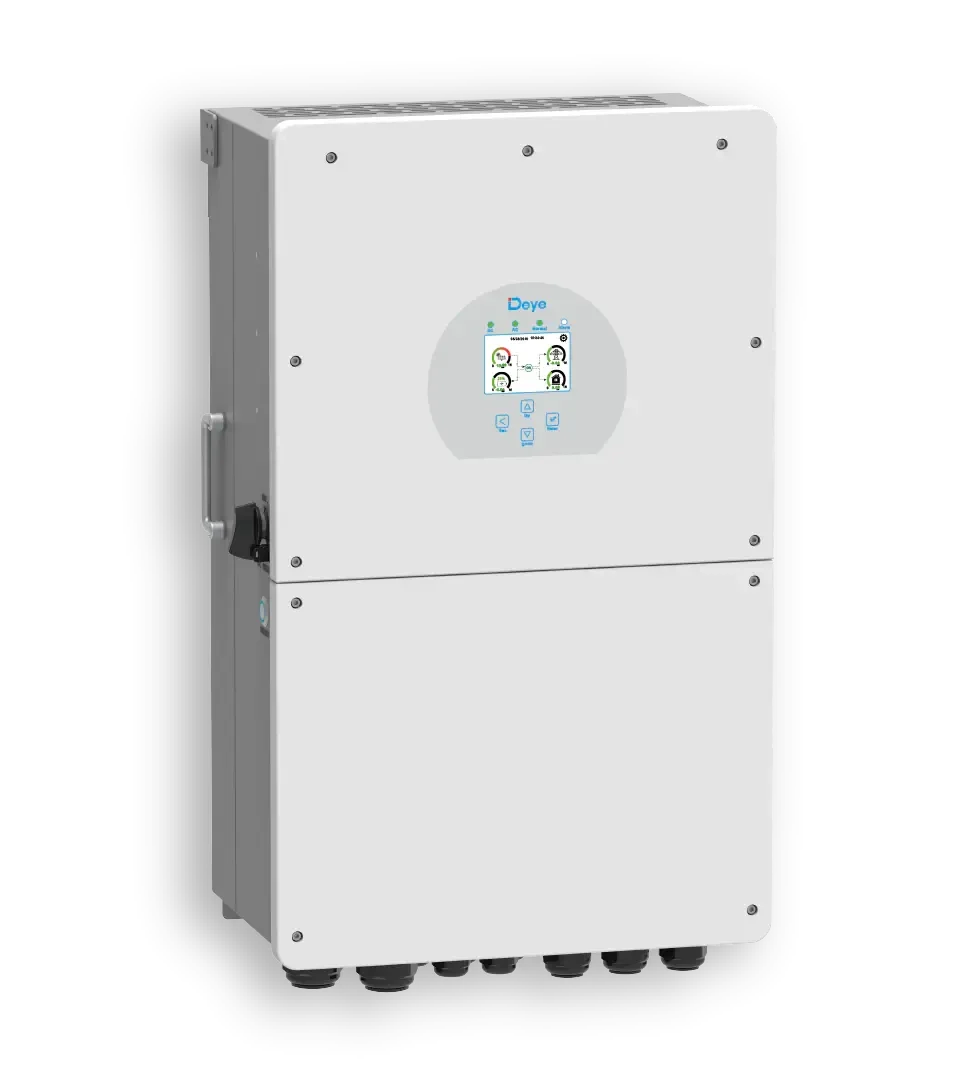

Deye 18kW Hybrid Inverter - 1P LV

R 43,650.00 R 45,600.00

Taxes included. Shipping calculated at checkout.

🔌 Deye 18kW Hybrid Inverter (Single-Phase) — SUN-18K-SG01LP1-EU

Brand: Deye
Model: SUN-18K-SG01LP1-EU
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid Integration)
Application: High-demand residential and light commercial solar systems requiring powerful hybrid performance and scalable energy storage.

⚡ Key Features

• 18 kW rated AC output — designed for large homes, estates, and small businesses with heavy loads
• True hybrid functionality — integrates solar PV, low-voltage lithium batteries (40–60 V), grid, and generator backup
• Triple MPPT trackers — maximises energy harvest across multiple roof orientations
• High PV input capacity (~23 kW DC supported) — allows PV oversizing for improved generation
• High battery charge/discharge capability — supports fast cycling and strong backup performance
• Parallel operation (up to 16 units) — scalable for larger installations or future expansion
• Wide MPPT voltage range — flexible string design and compatibility with modern high-power modules
• IP65-rated enclosure — suitable for indoor or outdoor installation environments
• Advanced monitoring & protection — intelligent energy management with CAN / RS485 communication
• UPS-class switching — seamless transition during outages to maintain critical loads

📐 Specifications

Specification	Value
Model	SUN-18K-SG01LP1-EU
Rated AC Output Power	18 kW
Phase	Single-Phase
Number of MPPTs	3
Max DC Input Power	~23 kW
MPPT Voltage Range	~150 – 425 V
Max DC Input Voltage	500 V
Battery Voltage Range	40 – 60 V (Low-Voltage)
Max Charge / Discharge Current	Up to ~300 A
Maximum Efficiency	~97.6%
Parallel Capability	Up to 16 Units
Protection Rating	IP65
Communication	CAN / RS485 / Optional Wi-Fi or LAN
Cooling	Intelligent Forced Air
Dimensions (W × H × D)	~464 × 763 × 282 mm
Weight	~52 kg
Warranty	5 Years

🏡 Benefits

• Handles larger load profiles than typical residential inverters
• Enables greater solar array sizing for improved ROI and faster payback
• Strong battery interface supports extended backup during load-shedding
• Flexible installation design reduces PV layout constraints
• Scalable architecture ensures the system can grow with future demand

🏷️ Ideal For

• Large residential properties with high consumption
• Guesthouses, lodges, and estates
• Offices and light commercial facilities
• Hybrid solar + storage systems requiring strong backup capability
• Installations planning phased expansion of PV or battery capacity

DATA SHEET
