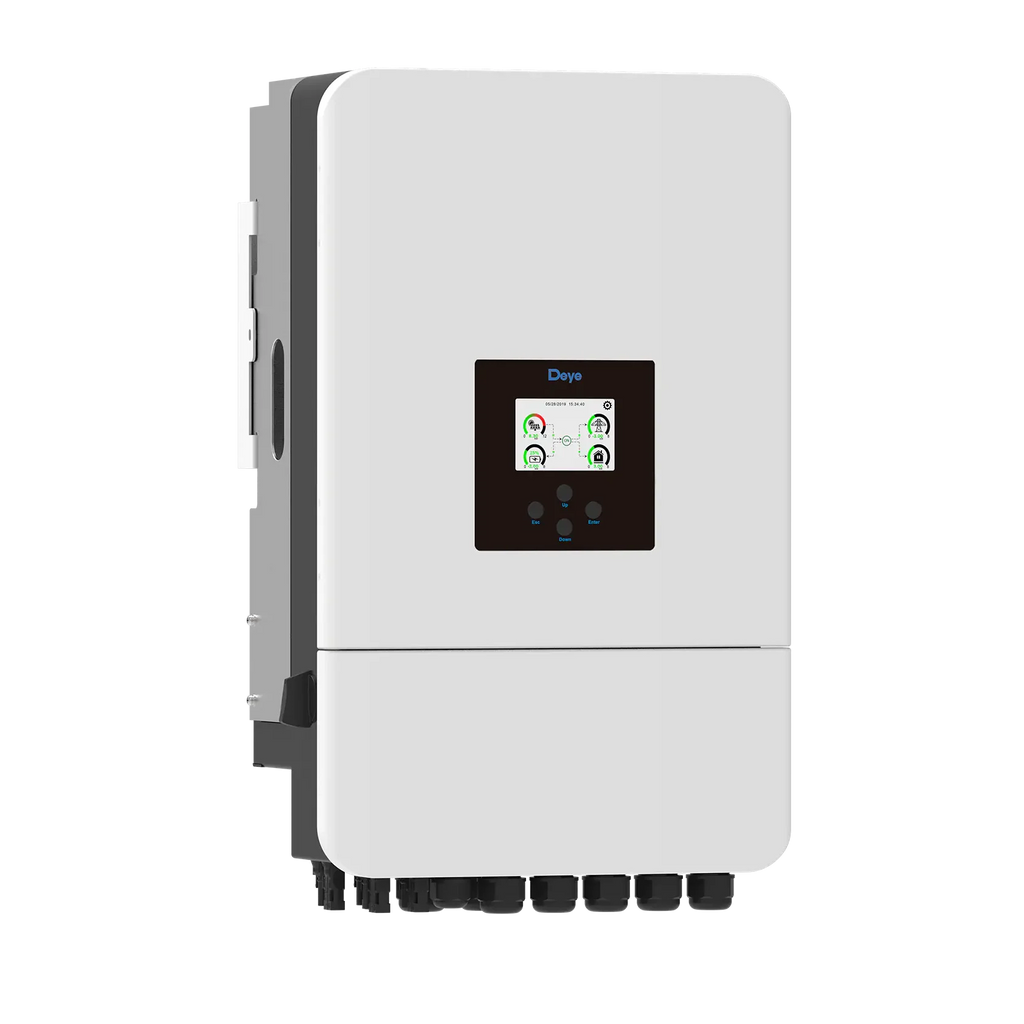

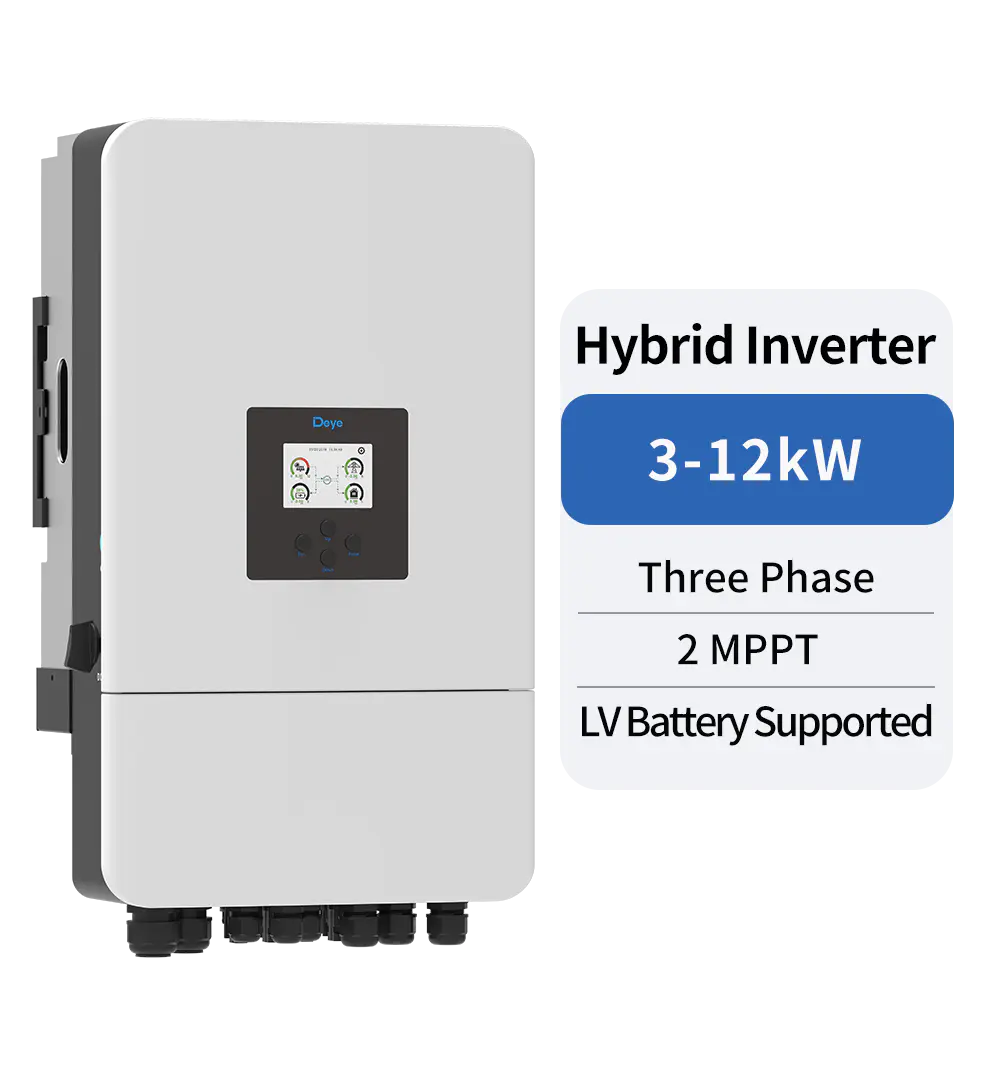

Deye 12kW 3P Hybrid Inverter (LV) V2

R 28,700.00 R 32,000.00

Taxes included. Shipping calculated at checkout.

🔌 Deye 12 kW Hybrid Inverter (Three‑Phase)
Model: SUN‑12K‑SG05LP3‑EU‑SM2
Brand: Deye
Type: Three‑phase Hybrid Inverter (Solar PV + Low‑Voltage Battery + Grid/Backup Integration)

⚡ Key Features

12 kW rated AC output in a three‑phase configuration — ideal for moderate commercial or larger residential installations.
Supports low‑voltage battery systems (~40‑60 V) for hybrid solar + storage setups.
Two MPPT trackers for flexible PV string configuration and improved energy harvest.
Wide PV input range: Max DC input voltage ~800 V, MPPT range ~200‑650 V.
Permits 100% unbalanced output per phase (each phase can supply up to ~50% of rated power) — useful for uneven loads.
Parallel operation support — up to 10 units in parallel for system scalability.
Outdoor‐rated IP65 enclosure for installation in challenging environments.
Supports AC‑coupling for retrofitting existing solar systems and both on‑grid/off‑grid operation modes.

📐 Specifications

Specification	Value
Model	SUN‑12K‑SG05LP3‑EU‑SM2
Rated AC Output Power	12 kW
Number of MPPTs	2
Battery Voltage Range	~40‑60 V
Max Battery Charging/Discharging Current	~240 A
Max PV Input Power	~18 kW
MPPT Voltage Range	~200‑650 V
Max DC Input Voltage	~800 V
Efficiency (Max)	~97.6%
Protection Degree	IP65
Grid Type	Three‑phase (3L+N+PE)
Dimensions (W×H×D)	~386 × 660 × 250 mm
Weight	~35.2 kg
Parallel Units Supported	Up to 10 units
Unbalanced Output Capability	100% unbalanced per phase (~50% rated each)
Warranty	Standard region‑dependent

🏷️ Quality & Support
This 12 kW three‑phase hybrid inverter from Deye is well suited for installations combining solar PV, battery storage, and grid/backup functionality. With its robust efficiency, wide input ranges, unbalanced load support, and outdoor suitability (IP65), it’s a strong option for environments where reliability and flexibility are required.

SPEC SHEET
