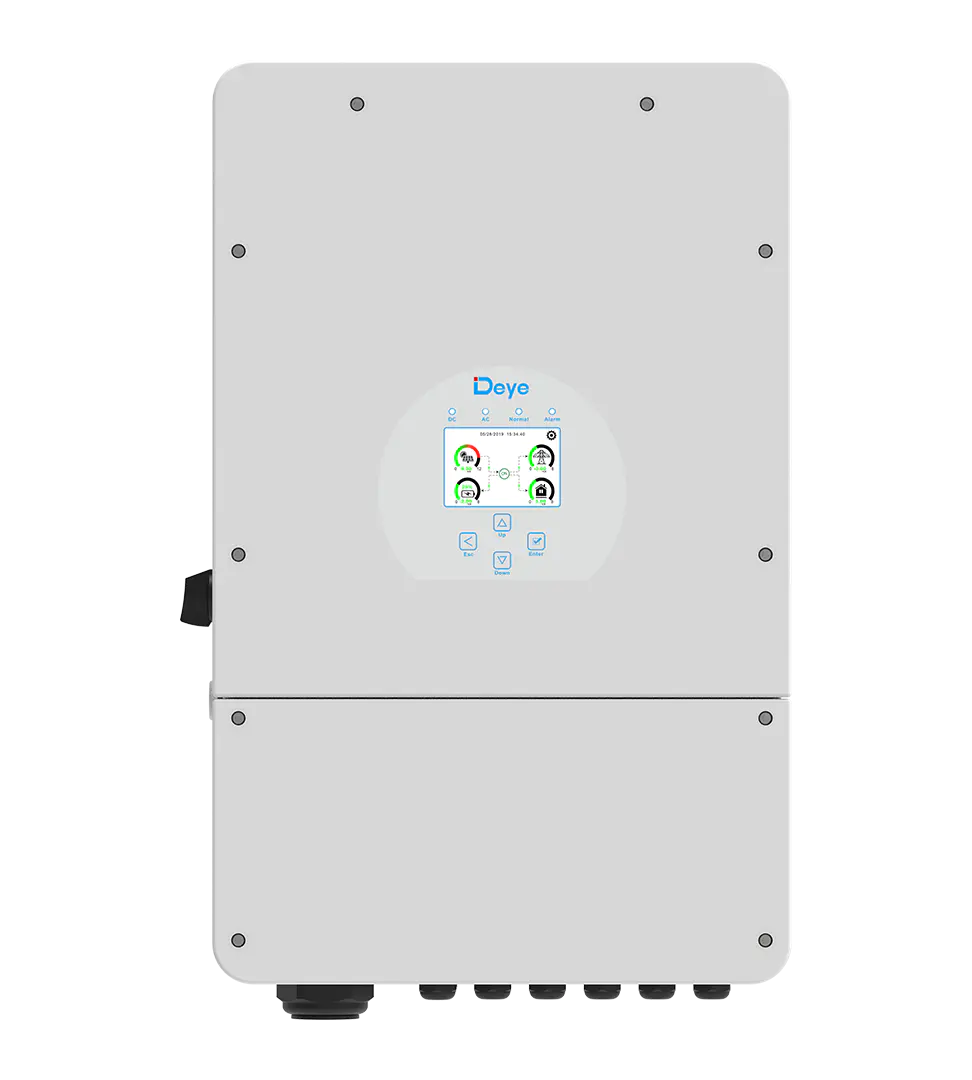

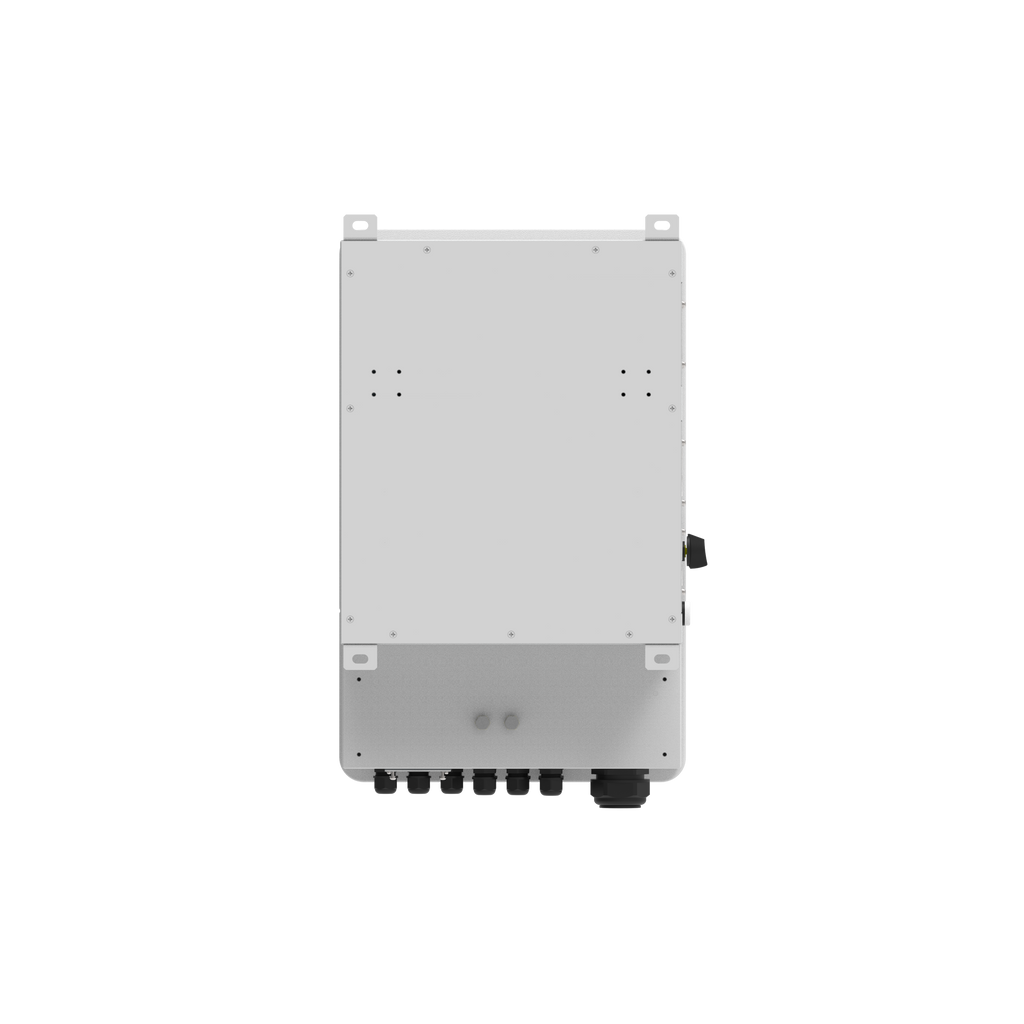

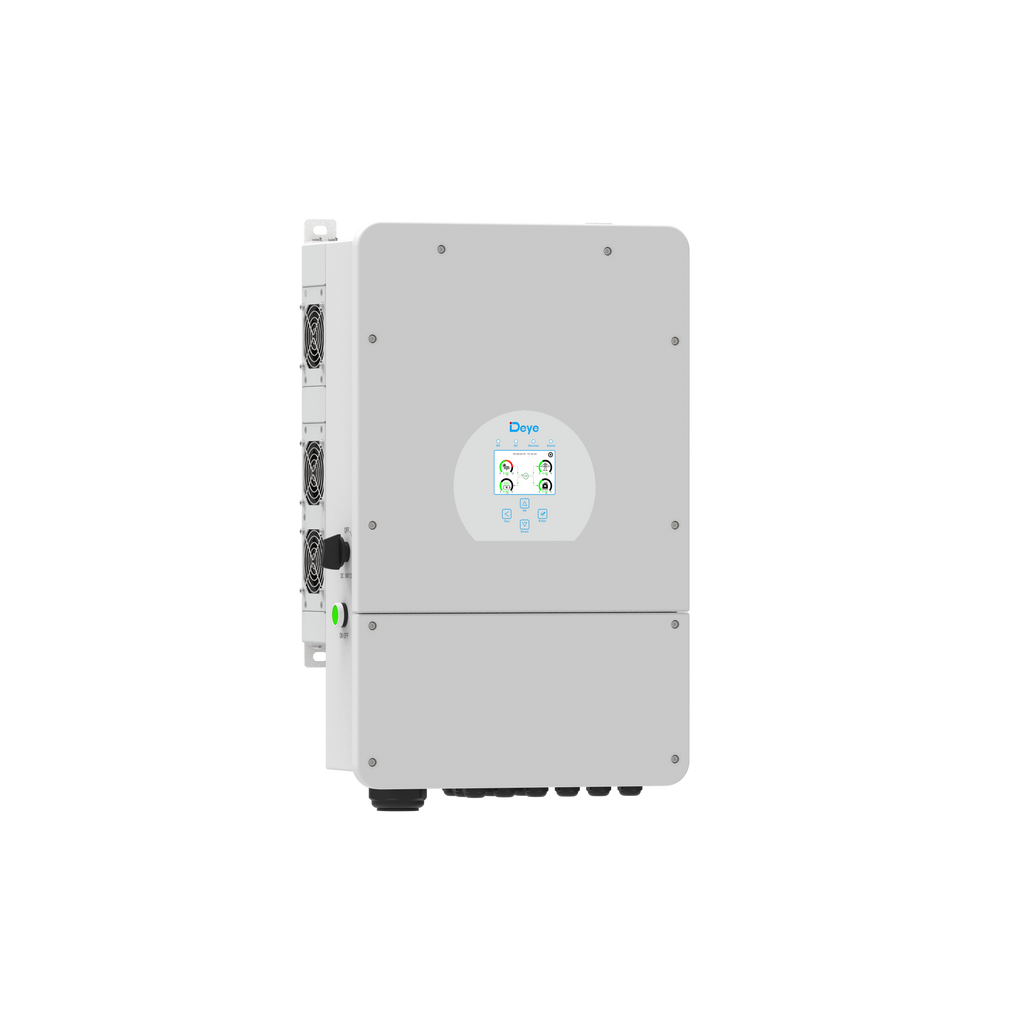

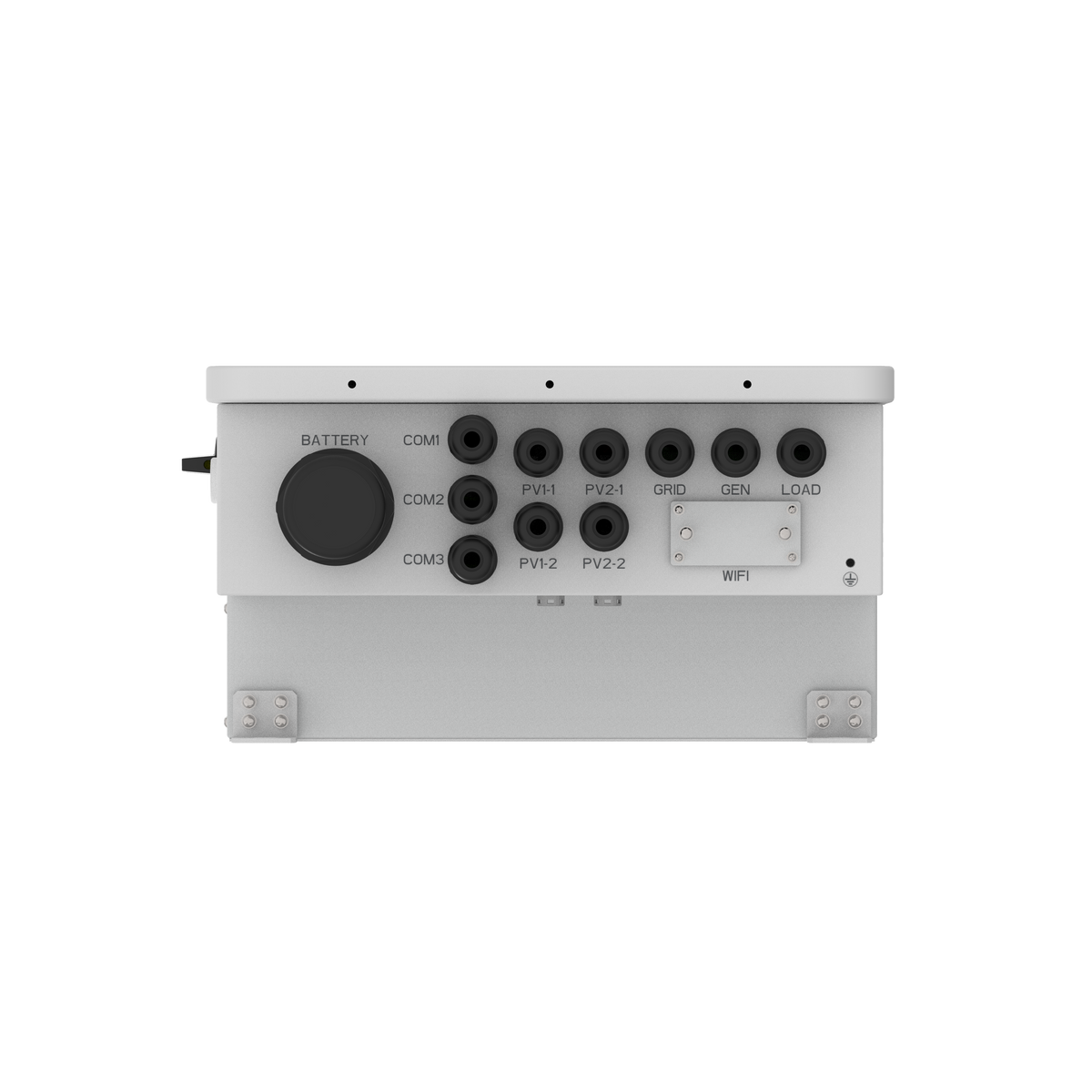

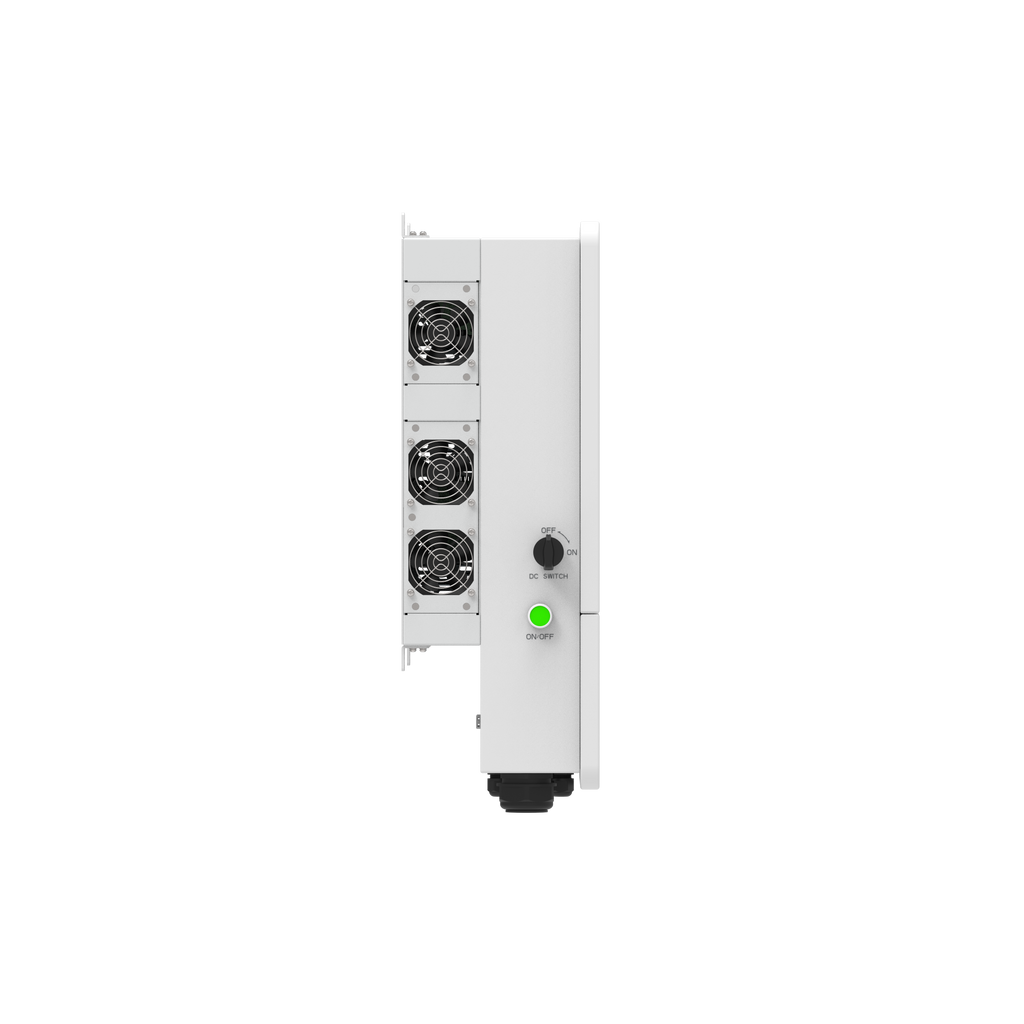

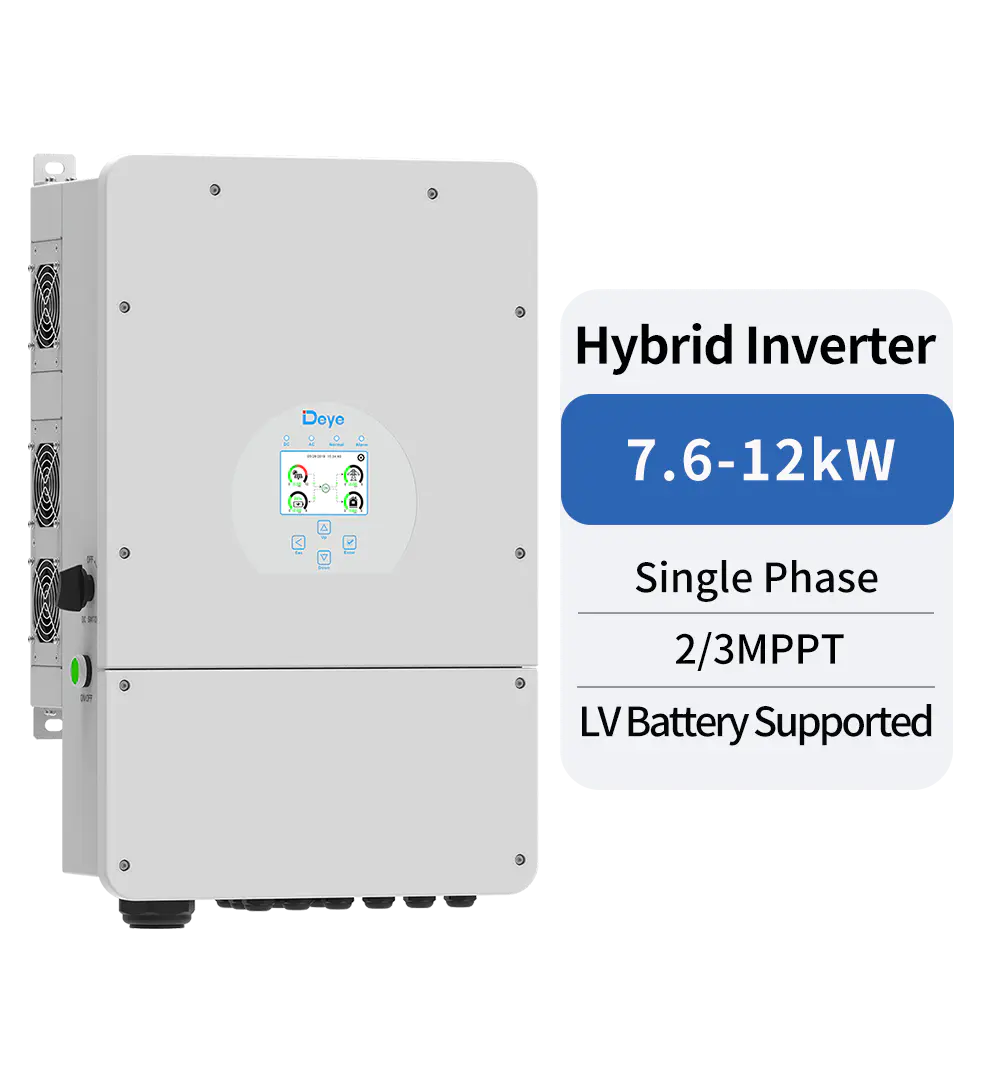

Deye 12kW Hybrid Inverter 1P (LV)

R 28,650.00 R 29,500.00

Taxes included. Shipping calculated at checkout.

🔌 Deye SUN‑12K‑SG02LP1‑EU‑AM3 (12 kW Single‑Phase Hybrid Inverter)
Brand: Deye
Type: Single‑Phase Hybrid Inverter (Solar + Low‑Voltage Battery + Grid/Backup Integration)

⚡ Key Features

12 kW rated AC output — suitable for residential, high‑demand single phase installations.
Hybrid capability: integrates solar PV generation, solar battery storage (low voltage range) and grid tie or off‑grid/backup operation.
2‑3 MPPT tracking inputs (depending on variant) for flexible solar string configuration and improved harvest.
Wide PV input voltage range and high DC input capacity to support large PV arrays.
High battery charge/discharge current capability (~250 A) for fast energy transfer.
IP65 rated enclosure for indoor or sheltered outdoor installation, allowing for robust environment performance.
Supports parallel operation of multiple units (up to 16) for system scalability.

📐 Specifications

Specification	Value
Model	SUN‑12K‑SG02LP1‑EU‑AM3
Rated AC Output Power	12 kW
Number of MPPTs	2‑3 (depending on variant)
Battery Voltage Range	~40–60 V
Max Battery Charge/Discharge Current	~250 A
Max DC Input Power	~18 000 W
Max DC Input Voltage	~500 V
MPPT Voltage Range	~150–425 V
Efficiency (Max)	~97.6%
Protection Degree	IP65
Grid Type	Single‑Phase (L‑N‑PE)
Dimensions (W×H×D)	~420 × 670 × 233 mm
Weight	~35–36 kg
Parallel Units Supported	Up to 16 units
Warranty	Standard (typically 5 years, extendable)

📝 Quality & Support

This 12 kW single‑phase hybrid inverter from Deye is engineered for modern home energy setups integrating solar generation, battery storage and grid interaction. With its high output, wide PV input range, strong battery support and scalable parallel capability, it's well suited for homes with large loads or backup requirements. The IP65‐rating ensures durability in environments like Johannesburg where weather/heat or dust may be a factor.

DATA SHEET
