Deye 125kW Hybrid Inverter 3P HV

R 156,650.00 R 168,800.00

Taxes included. Shipping calculated at checkout.

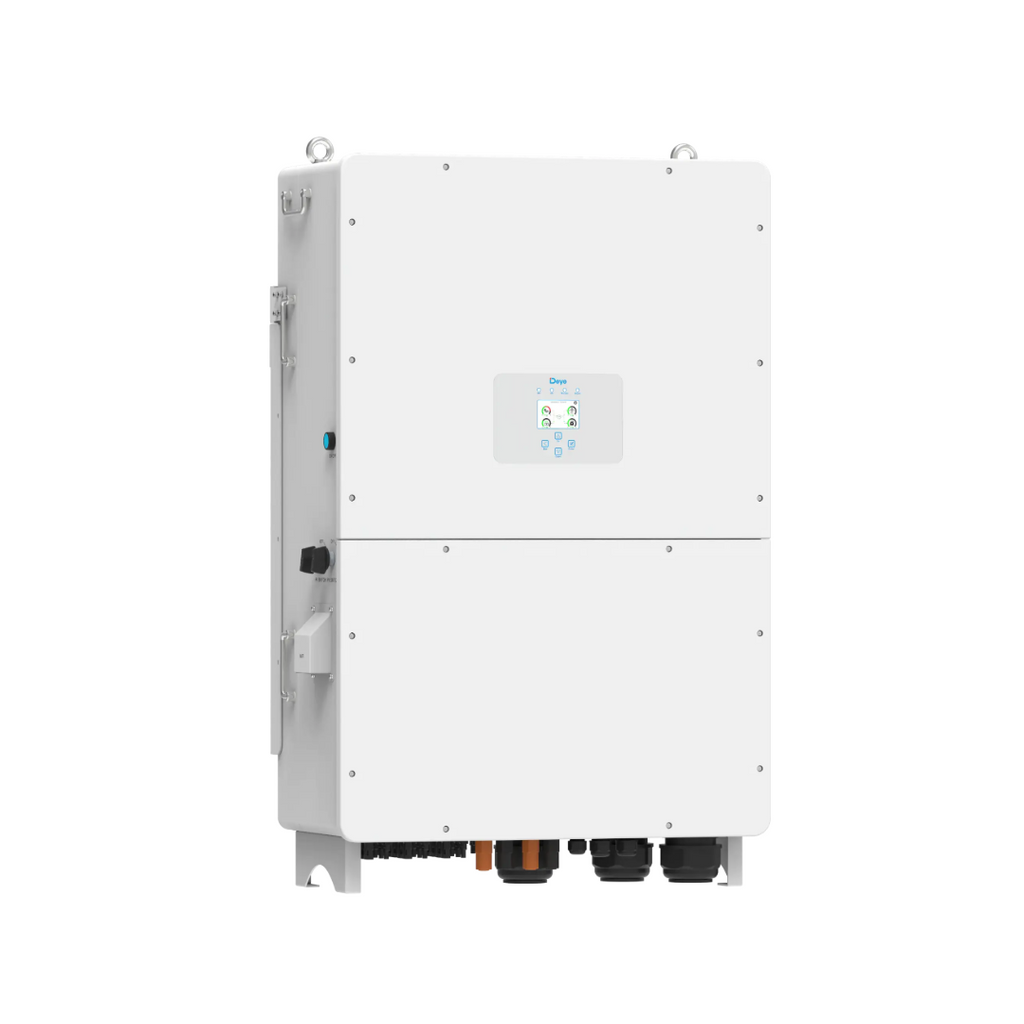

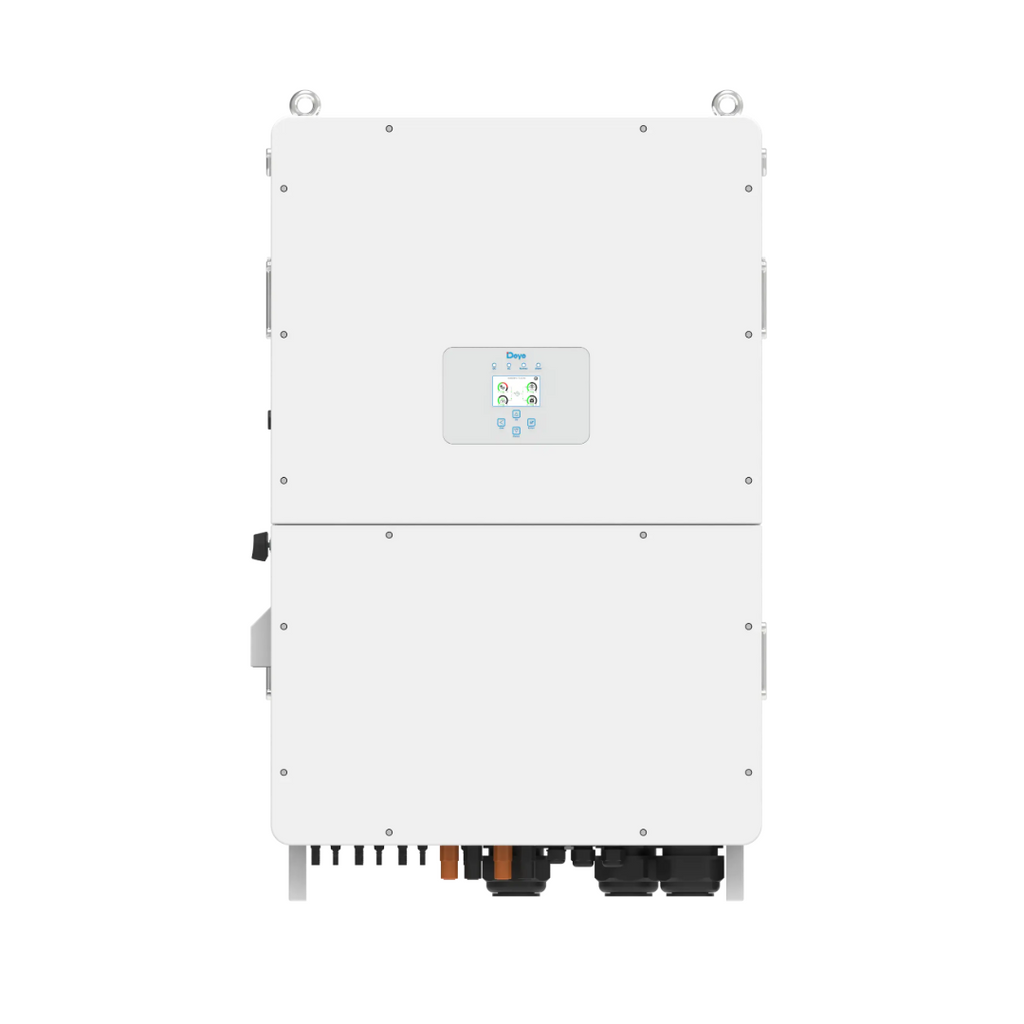

Deye 125kW 3-Phase Hybrid High-Voltage Inverter

Model: SUN-125K-SG02HP3-EU-GM10
Brand: Deye
Type: Three-Phase Hybrid Solar Inverter (High-Voltage Battery Compatible)

Key Features

• High-capacity 125kW output — designed for large commercial and industrial energy systems
• Three-phase hybrid inverter — seamless integration of solar, grid, and battery storage
• High-voltage battery support — compatible with advanced lithium-ion HV battery systems
• Dual battery inputs — enhanced flexibility for large-scale storage configurations
• 10 MPPT trackers — maximised solar harvesting across complex PV array layouts
• Wide PV input range — supports high-voltage strings for efficient system design
• Intelligent energy management — optimises self-consumption and grid interaction
• UPS functionality — seamless switchover during grid outages
• Parallel capability — scalable for multi-inverter installations
• Advanced monitoring — supports RS485, CAN, WiFi, LAN, Bluetooth, and 4G (optional)
• Industrial-grade protection — comprehensive safety and fault detection systems
• IP65-rated enclosure — suitable for outdoor and harsh environmental conditions

Specifications

Battery Input

Specification	Details
Battery Type	Lithium-ion
Battery Voltage Range	160 – 1000 V
Max Charge/Discharge Current	100 + 100 A
Battery Inputs	2
Charging Strategy	Self-adaptive to BMS

PV Input

Specification	Details
Max PV Access Power	250,000 W
Max PV Input Power	200,000 W
Max PV Input Voltage	1000 V
Start-up Voltage	180 V
MPPT Voltage Range	150 – 850 V
Rated PV Input Voltage	650 V
Max Operating Current	42 × 10 MPPT
Max Short-Circuit Current	63 × 10
MPPT Trackers	10 (2 strings per MPPT)

AC Input / Output

Specification	Details
Rated Power	125,000 W
Max Apparent Power	135,000 VA
Rated Current	189.4 / 181.2 A
Max Current	204.6 / 195.7 A
Max AC Passthrough	250 A
Peak Power (Off-grid)	1.5× rated power (10s)
Power Factor	0.8 leading to 0.8 lagging
Voltage	220/380V, 230/400V (3L+N+PE)
Frequency	50/60 Hz
THDi	<3%
DC Injection	<0.5% ln

Efficiency

Specification	Value
Max Efficiency	98.70%
Euro Efficiency	98.10%
MPPT Efficiency	>99%

Protection Features

• DC reverse polarity protection
• AC output overcurrent protection
• AC overvoltage protection
• Short circuit protection
• Thermal protection
• Anti-islanding protection
• Residual current detection
• Insulation impedance detection
• DC component monitoring
• Optional Arc Fault Circuit Interrupter (AFCI)
• Surge protection: Type II (DC & AC)

General Specifications

Specification	Details
Operating Temperature	-40°C to +60°C (>45°C derating)
Humidity	0 – 100%
Altitude	Up to 3000 m
Noise Level	≤ 65 dB
Protection Rating	IP65
Cooling	Intelligent Air Cooling
Topology	Non-Isolated
Dimensions (W×H×D)	734 × 1091 × 344 mm
Weight	161.7 kg

Communication & Monitoring

• Interfaces: RS485 / RS232 / CAN
• Monitoring: GPRS / WiFi / Bluetooth / 4G / LAN (optional)
• Display: LCD + LED

Compliance & Standards

• Grid Standards: IEC 61727, IEC 62116, EN 50549, NRS 097, G99, VDE-AR-N 4105
• Safety & EMC: IEC/EN 62109-1/2, IEC/EN 61000-6 series

Applications

• Commercial and industrial solar systems
• Large-scale hybrid energy storage systems
• Factories and warehouses
• Shopping centres and office parks
• Grid-tied and off-grid hybrid installations

Quality & Support

The Deye 125kW hybrid inverter is engineered for high-performance commercial energy systems, delivering exceptional efficiency, scalability, and advanced protection features—making it a reliable backbone for large-scale solar and storage installations.
